Check Valves 1/4" - max. 20 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80590

  Manufacturer

  CharacteristicsType: VU
  Max. pressure: 350 bar

  Check valve that prevents flow in one direction and releases flow freely in the other direction.

  Technical specification:
  - type: VU
  - material galvanized steel
  - connection V C: G 1/4"
  - max. flow: 20 l/min
  - max. pressure: 350 bar
  - opening pressure: 0.5 bar

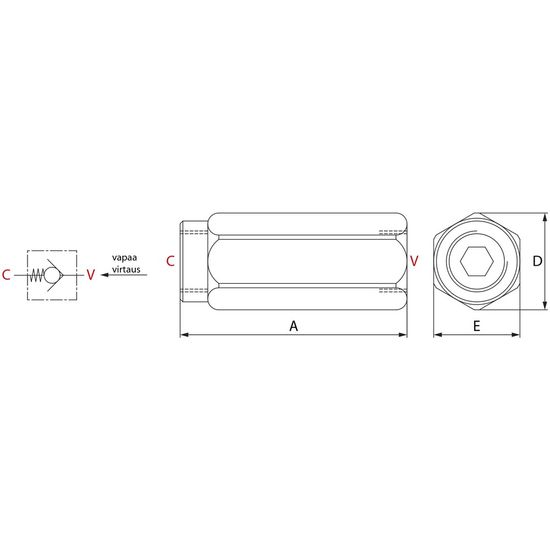

  See attached image for specific measurements:
  - A: 62 mm
  - D: 21 mm
  - E: 19 mm
