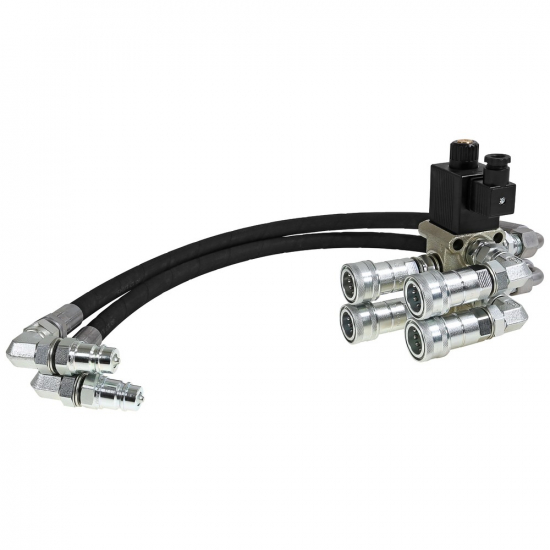

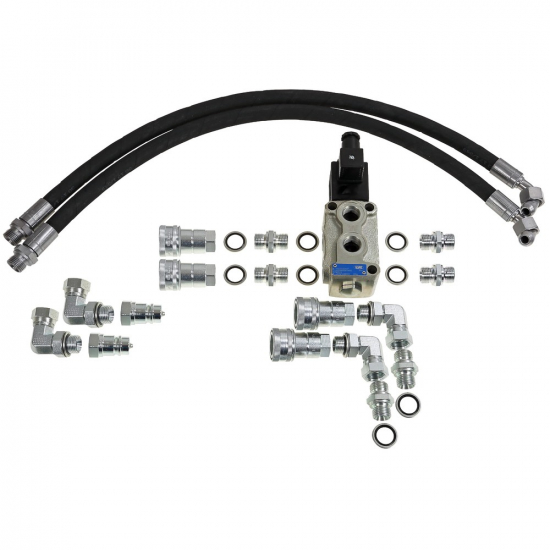

Complete hydraulic kit 6/2, 1/2" for extra function, e.g. third function - front loader

€576
Incl. VAT
Trackable international shipping 3-5 business days delivery Secure payments

Add to cart
Lägg i kundvagnen

bet alt
  • Info
  • Stock status
    Product IDFM2502
    ManufacturerAGRILIFE
    Characteristicsfor additional function, e.g. third function - front loader
    Max. flow rate 60 l/min

    An easy and cost-effective way to get more out of the machine's hydraulics. With this complete hydraulic kit, you can have two double-acting outlets from the existing double-acting outlet.

    The hydraulic kit can be mounted both temporarily and permanently on a tractor or work machine.

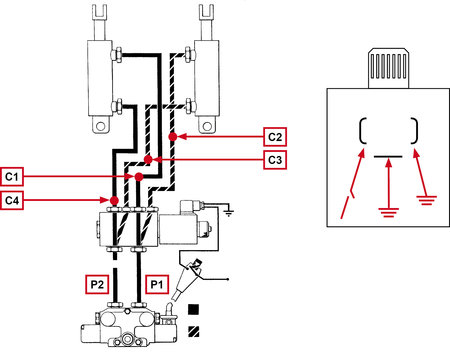

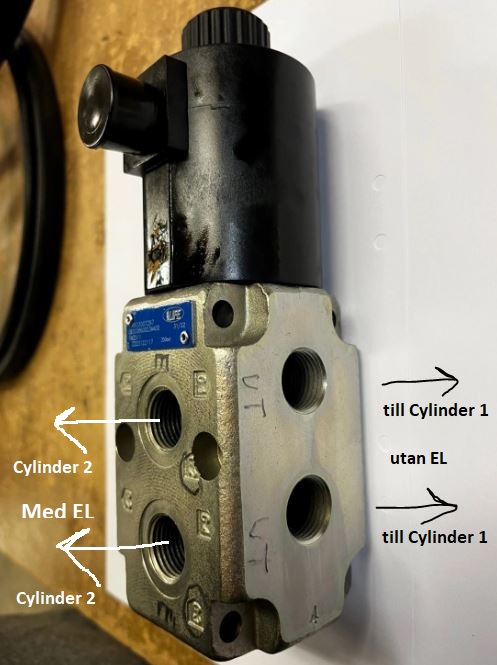

    In normal mode, the original hydraulics pass through the valve to ports A and B, and when the electric valve is activated, the flow switches to ports C and D.

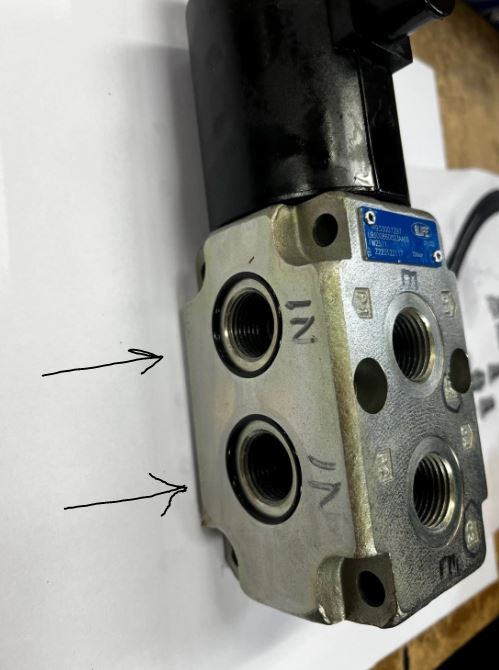

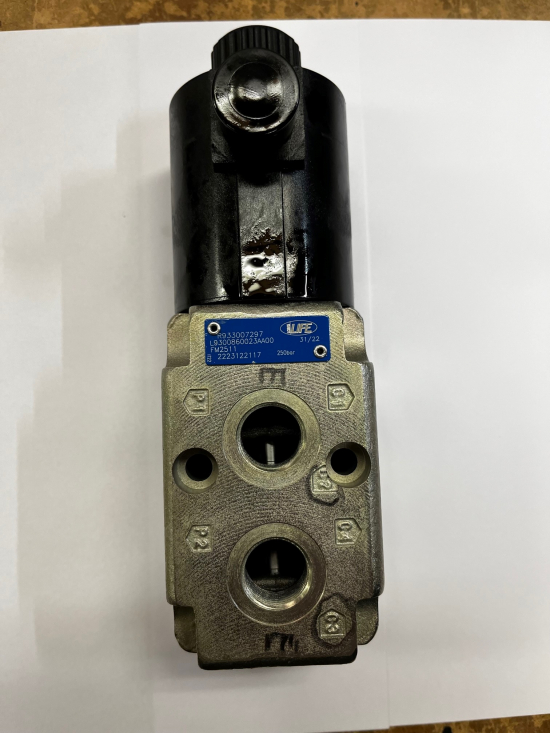

    Technical specification 6/2 selector valve:
    - voltage: 12 V
    - connections BSP: 1/2"
    - max. flow: 60 l/min
    - max. pressure: 250 bar
    - hose length: 700 mm

    Quick coupling male 1/2"
    - 2NV quick coupling male A-series
    - interchangeable according to ISO 7241-1 A standard
    - cannot be connected/disconnected under pressure
    - size 1/2"
    - thread G 1/2" -14
    - flow 60 l/min
    - operating pressure 250 bar
    - burst pressure 1000 bar

    Quick coupling female 1/2"
    - interchangeable according to ISO 7241-1 B standard
    - for industrial use
    - cannot be connected/disconnected under pressure
    - operating pressure 350 bar
    - flow 75 l/min
    - burst pressure 1400 bar
    - thread BSP 1/2" female
