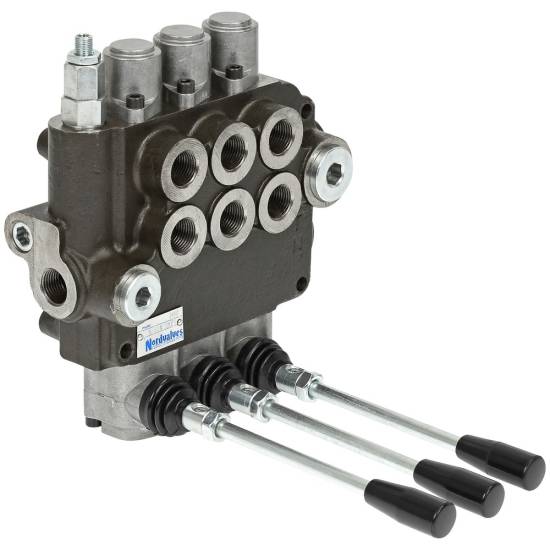

Directional Control Valve 1/2" - max. 80 l/min 3-SPOOL

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDP803A1

  ManufacturerHydro-Pack

  CharacteristicsType: 3 sections
  Double-acting

  P80 monoblock is a manually or wire controlled directional valve that returns to center position.
  The valve package is equipped with a pressure limiter and check valve. The valve can be connected in series (N-port BSP 3/4").

  Technical specification:
  - type: 3 sections
  - sections: double-acting
  - material: cast iron housing, sections of chrome-plated carbon steel
  - max. flow 80 l/min
  - max. working pressure 300 bar
  - max. pressure return line 50 bar
  - working and return port BSP 1/2"
  - return port BSP 3/4"
  - dimension A: 80 mm
  - dimension B: 94 mm
  - dimension C: 198 mm
  - dimension D: 141 mm
