Directional Valve 1/2" 12V 1-SPOLE

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDZ801AES312

  Manufacturer

  CharacteristicsMax flow: 80 l/min
  Sections: double-acting


  Technical specification:

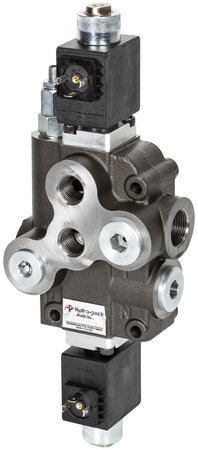

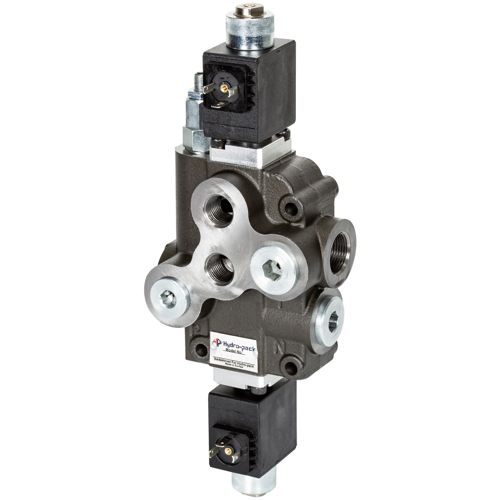

  - Z80 solenoid-operated directional valve
  - spring return to center position
  - material: cast iron housing, sections of chrome-plated carbon steel
  - voltage: 12 V (solenoid power 37 W, duty cycle 100%)
  - type: 1 section
  - sections: double acting
  - max. flow: 80 l/min
  - max. pressure P: 250 bar / T: 50 bar / A, B: 300 bar
  - working port G: 1/2" (A and B)
  - pressure port G: 1/2" (P)
  - tank port G: 3/4" (T)
