Directional Valve 3/8" - max 40 l/min 2-SPOOL PACKAGE

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDVentilpaket002

  Manufacturer

  CharacteristicsPackage for series connection
  2 Functions

  P40 monoblock is a manual or cable-controlled directional control valve with spring centering.

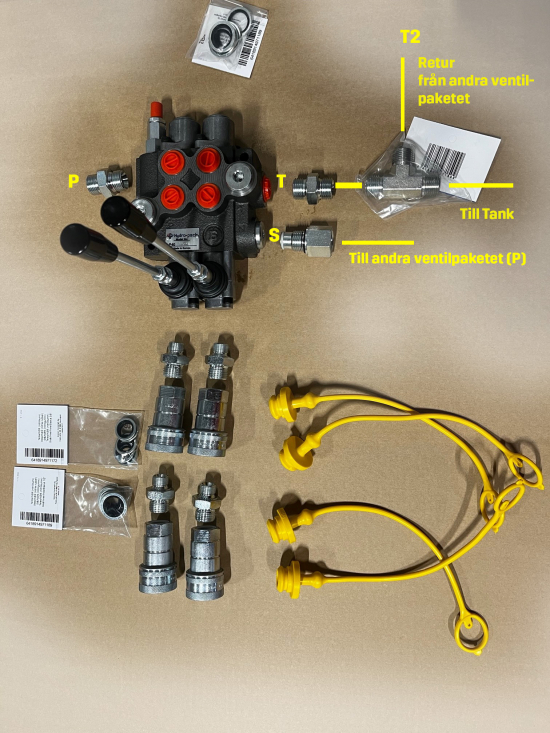

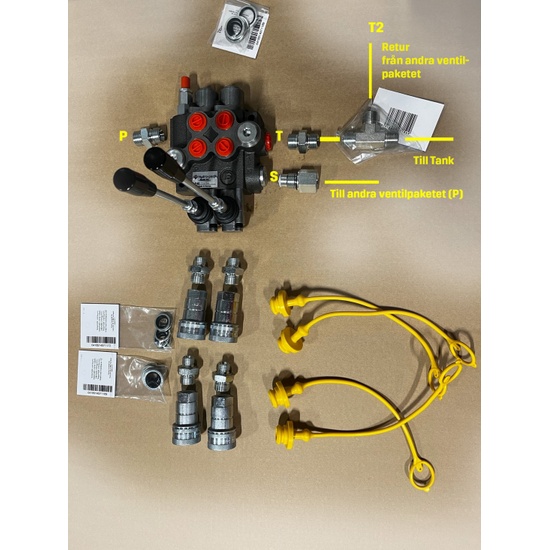

  The valve package is equipped with a pressure limiter and check valve. The valve can be connected in series (N port BSP 1/2").

  Technical specification:
  - type: 2 sections
  - sections: double acting
  - material: cast iron housing, chrome-plated steel sections
  - max. flow 40 l/min
  - max. operating pressure 300 bar
  - max. return line pressure 50 bar
  - work port BSP 3/8"
  - pressure and return port BSP 1/2"
  - dimension A: 60 mm
  - dimension B: 80 mm
  - dimension C: 129 mm
  - dimension D: 97 mm

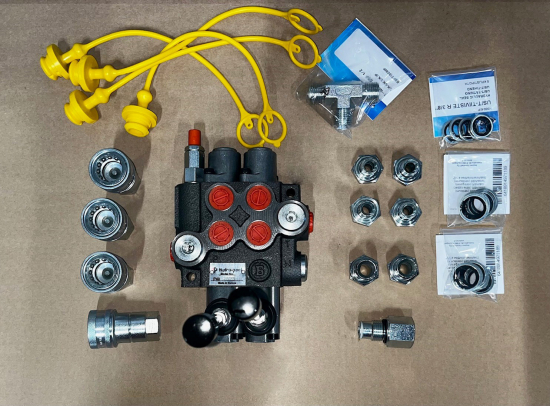

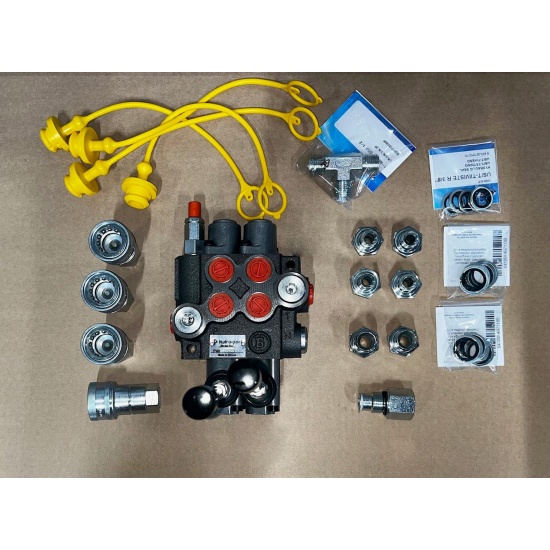

  The package includes:
  1x Direction control valve P402A1
  1x Series nipple P40-CO
  2x 1/2"-1/2" Adapter BSP2020808
  4x 3/8"-3/8" Adapter BSP2020606
  4x Quick coupling 3/8" Female ANV38GASF
  1x Rubber gasket 1/2" 5-pack H300-8IP
  2x Rubber gasket 3/8" 5-pack H300-6IP
  4x Protection plug for 3/8" TMA38K
  1x T-nipple 1/2" BSP71208

  Contact us if you need help connecting everything.

  Note: If you want to set quick couplings not directly on the valve package but instead connect them with hoses, you will need more male/male adapters (2 more).

  Note: If you need a different package with more or fewer kicks or if you need a valve package with 80 liters flow, please contact us via email info@sagro.se or phone: 0499-49059
