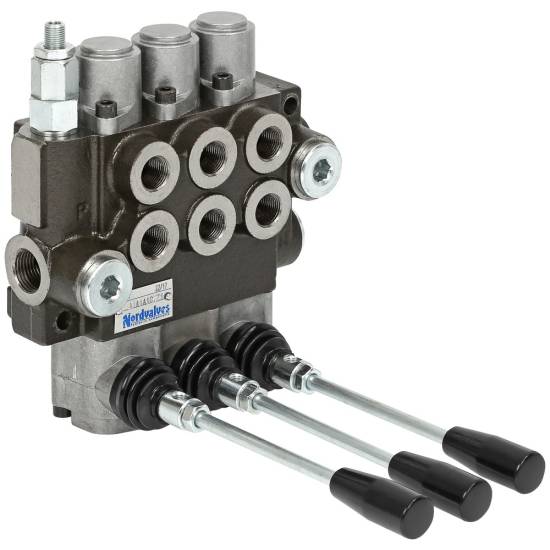

Directional valve 3/8" - max. 40 l/min 3-COIL

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDP403A1

  ManufacturerHydro-Pack

  CharacteristicsType: 3 sections
  Double-acting

  P40 monoblock is a manually or wire controlled directional valve that returns to center position.
  The valve package is equipped with a pressure limiter and check valve. The valve can be connected in series (N-port BSP 1/2").

  Technical specification:

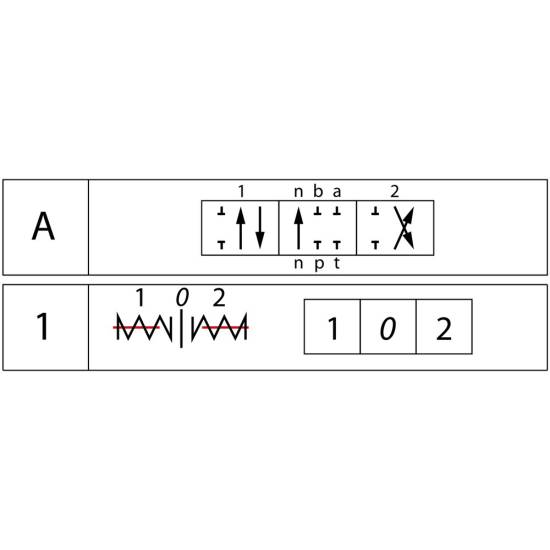

  - 3 sections
  - sections: double-acting
  - material: cast iron housing, sections of chrome-plated carbon steel
  - max. flow 40 l/min
  - max. working pressure 300 bar
  - max. pressure return line 50 bar
  - working port BSP 3/8"
  - pressure and return port BSP 1/2"

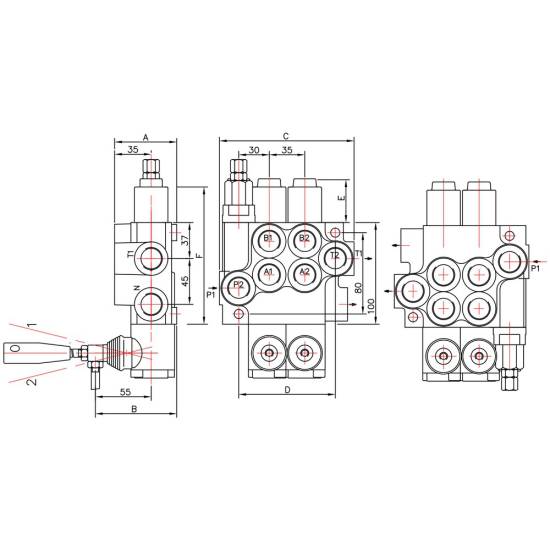

  - dimension A: 60 mm
  - dimension B: 80 mm
  - dimension C: 164 mm
  - dimension D: 132 mm

  Can be complemented with a P40 Valve coil with protective cap.
