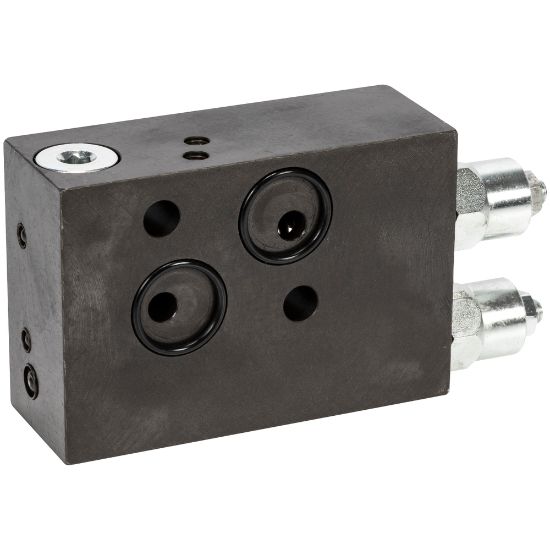

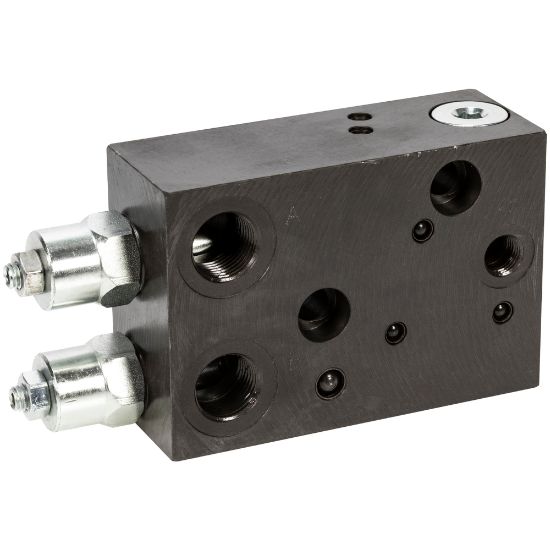

Double Load-Holding Valve 1/2 Bvs

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80432

  Manufacturer

  Characteristics

  - double-acting directional control valve for MS-series motors
  - flow will not open until the control pressure for the second channel rises above the set minimum
  - material: galvanized steel
  - with brake release
  - pressure range 60 -250 bar
  - flow 60 l/min
  - max. working pressure 250 bar
  - connection G1/2" , exhaust G 1/4"
  - opening ratio 1: 4.25
  - mounting with 2 M10x40mm screws
  - O-ring 22x2.65
