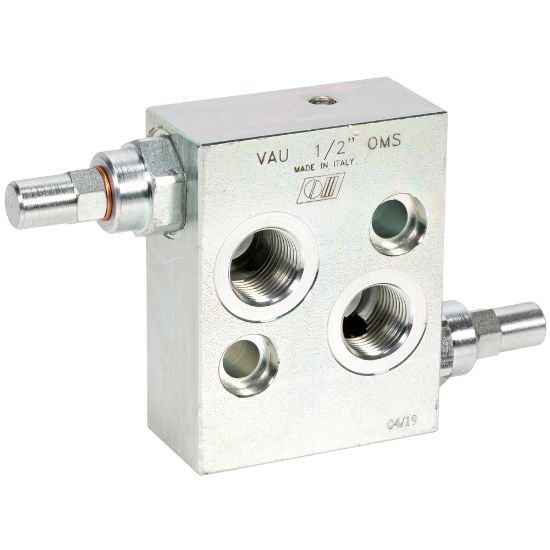

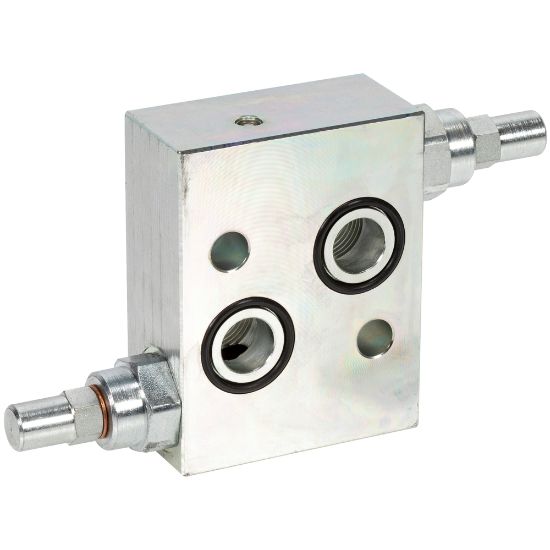

Double Relief valve 1/2 Vau 30-180

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80739-180

  Manufacturer

  Characteristics

  - dual-acting directional valve for MS-series motors
  - type VAU 1/2" OMS
  - a pressure relief valve is used to protect the system from damage caused by overpressure
  - both lines have a common tank connection
  - material: galvanized steel
  - adjustable safety valve 30-180 bar (factory setting 90 bar)
  - adjustment 30 bar / revolution
  - connection V1, V2 : G 1/2"
  - SF 1/4"
  - max. flow 50 l/min
  - max. operating pressure 350 bar
