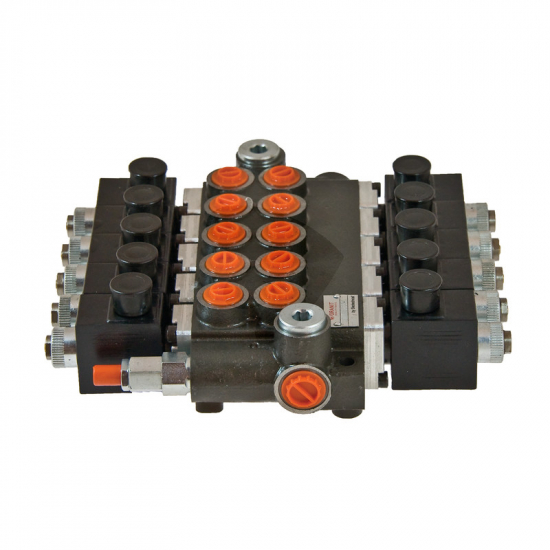

E-valve 12V 5x DC (A-B closed)

• Info
• Stock status

  Product ID87001034

  Manufacturer

  Characteristics

  More information

  Connection P (BSP):1/2"

  Connection T (BSP):3/4"

  Connection A-B (BSP):1/2"

  Design:12V DC



  Nominal flow (l/min):80
  Nominal Operating Pressure P: 200 bar
  Nominal Operating Pressure A - B: 200 bar Nom.
  Operating Pressure T: 25 bar
  Contamination level: 10 according to NAS1638
  Oil temperature: -15°C to +80°C
  Voltage: 12 (DC); power: 37 W; ED: 100%
  Internal leakage: approx. 40 cm³/min at 120 bar
  Design: Monoblock valve of cast steel
• Product groups
• Hydraulic Valves

• OEM part no.
• 05Z80AAAAAES312VDCG
