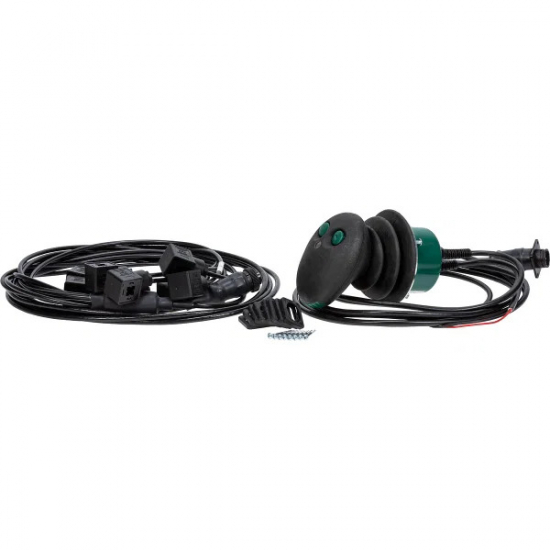

Ergo Pro-X Forestry Crane Joystick And Cable Type A

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM2025HX

  Manufacturer

  CharacteristicsMemory for two user profile
  ERGO control cable 4,5m Hirschmann

  - The new PRO X model differs from the traditional ERGO joystick by offering memory for two user profiles. This allows individual settings to be saved for two different operators or two different applications. The user profile is selected when the machine is started.
  - The joystick has integrated electronics and can be installed in a new system or replace an existing control (e.g. IPS / VCU / EHC system with handle). Pre-programmed for forestry crane control, but also suitable for other similar cranes and hydraulic applications.
  - The PRO handle has a built-in 2,5 m cable. Includes a HIRSCHMANN (FM2031) cable set suitable, for example, for a BC60 valve block.
  - Made in Finland.

  Benefits and features:
  - Memory for two user profiles (PRO X model)
  - Good working ergonomics
  - Easy installation
  - All electronics integrated into the handle
  - Easy to program user- and unit-specific adjustments and settings
  - Extensive adjustment options (including dead zones, initial and maximum speed, movement-specific acceleration and deceleration ramps)
  - Suitable for controlling most hydraulic valves
  - Overcurrent control monitors incorrect values and automatically switches off the current when necessary
  - Temperature and voltage compensation
  - Protected against voltage spikes occurring during normal use

  Note:
  - Read the operating and installation instructions carefully before use. The warranty does not cover incorrectly installed products.

  Technical data:
  - Operating voltage: 12 / 24 V
  - Control: PWM 100 Hz
  - Max. current: 1500 mA
  - Channels: 8 pcs (6 analogue / proportional + 2 digital on/off)
  - Handle material: moulded plastic with glass-fibre reinforcement
  - Construction: stainless steel and aluminium
  - Mounting holes: 4 pcs, 6 mm (Ø 108 mm spacing)
  - Height: 185 mm
  - Diameter: Ø 120 mm
  - Weight: 720 g
