Flow control valve 1/2
Video

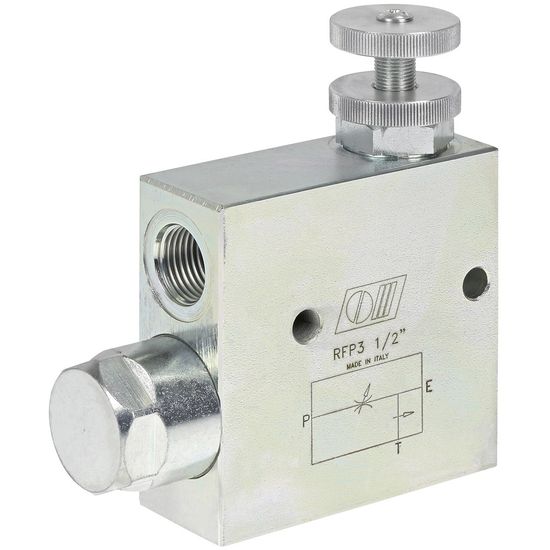

Flow control valve 1/2" - 80 l/min

€233
Incl. VAT
5-10 business days delivery Trackable international shipping Secure payments

Add to cart
Lägg i kundvagnen

bet alt
  • Info
  • Stock status
    Product IDH81120
    Manufacturer
    CharacteristicsType: RFP3
    Max pressure: 350 bar
    The flow control valve maintains the set flow rate regardless of pressure.
    Excess flow is directed to the tank.

    Technical specification:
    - type: RFP3
    - material galvanized steel
    - BunaN seal
    - connection E P T: G 1/2"
    - inlet flow: 80 l/min
    - adjusted flow: 60 l/min
    - max pressure: 350 bar

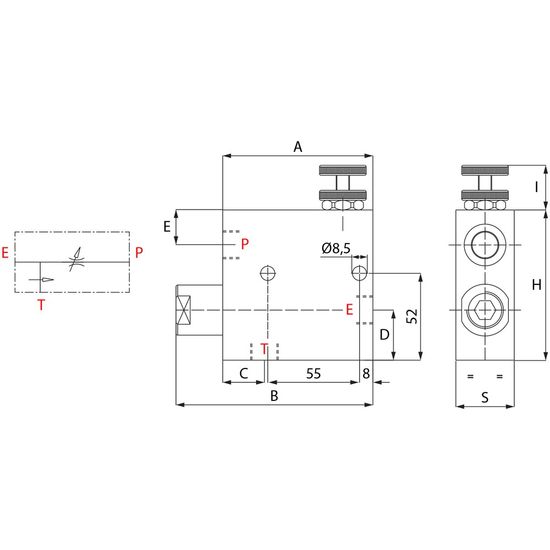

    Refer to the attached image for specific dimensions:
    - A: 90 mm
    - B: 118 mm
    - C: 25 mm
    - D: 32 mm
    - E: 20 mm
    - H: 90 mm
    - I: 40 mm
    - S: 35 mm
