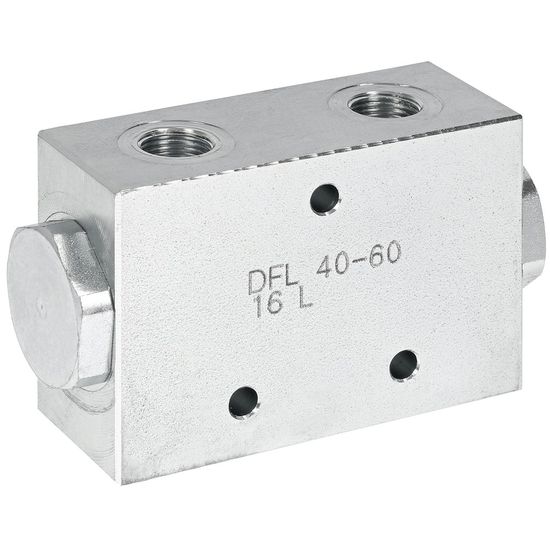

Flow divider 1/2" - max. 60 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH81026

  Manufacturer

  CharacteristicsType: DFL
  Working pressure: 250 bar

  The flow divider divides the flow into two equal parts, e.g., for two cylinders.

  Technical specification:
  - type: DFL
  - material galvanized steel
  - BunaN seal
  - connection P: G 1/2"
  - connection A B: G 3/8"
  - min. flow: 40 l/min
  - max. flow: 60 l/min
  - working pressure: 250 bar
  - max pressure: 300 bar

  Refer to the attached image for specific dimensions:
  - A: 117 mm
  - B: 53 mm
  - C: 40 mm
  - H: 70 mm
  - I: 45 mm
  - S: 40 mm
