Front loader kit Z50 2xDW-1250/button

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID12540472

  Manufacturer

  Characteristics- Z50, 2x double acting, one with float position
  - Open centre system with power beyond
  - Incl. screw coupling

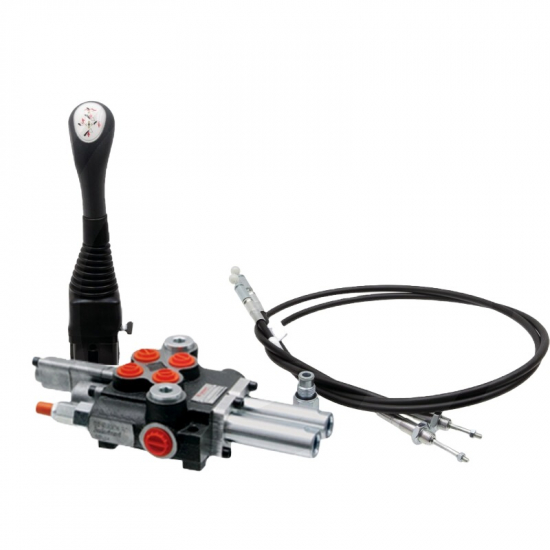

  With this modern control valve, you can operate all front loader functions smoothly and precisely via the control lever. The lever is ergonomically positioned to the right of the steering wheel and operates the valve through two cables (1250 mm) inside the cab. The control valve is mounted on the right-hand loader console and also serves as a disconnecting point for the loader’s hydraulic supply.

  Whether lifting, lowering or using the float position, tilting or dumping the attachment – all functions are managed without modification or adjustment. The robust monoblock construction ensures high operational reliability and excellent internal sealing, even at high flow rates.

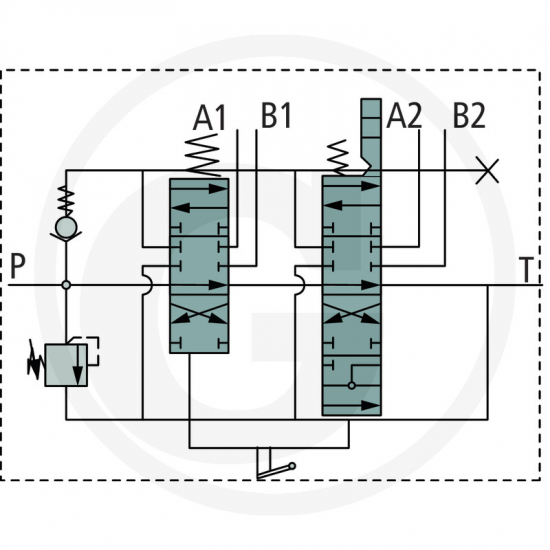

  The valve features 2x double-acting functions, one with float position, plus one electric on/off function via push button. The system is Open Center (OC) with power beyond and designed for demanding hydraulic applications.

  Technical specifications:
  - Cable length: 1250 mm
  - Spool function: 1x double acting, 1x double acting with float position
  - Number of on/off functions: 1 (button)
  - Connection A-B (BSP): G 3/8"
  - Connection P (BSP): G 1/2"
  - Connection T (BSP): G 1/2"
  - Nominal flow: 50 l/min
  - PN (max pressure): 315 bar
  - Adjustment range: 120–250 bar
  - System: Open Center (OC)
  - Design: Open system with power beyond
