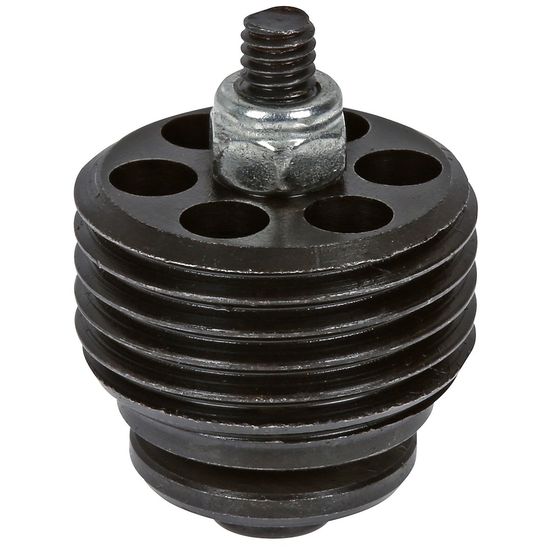

Hose break valve 1/2" - max. 80 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM030119

  Manufacturer

  CharacteristicsType: VUBA
  Max pressure: 350 bar

  Technical specification:
  - type VUBA
  - prevents backflow of oil in case of hydraulic hose or tube damage, simultaneously stops the machine's movement
  - material polished steel
  - max. flow 80 l/min
  - max. pressure 350 bar
  - corresponding valve housing: FM277198

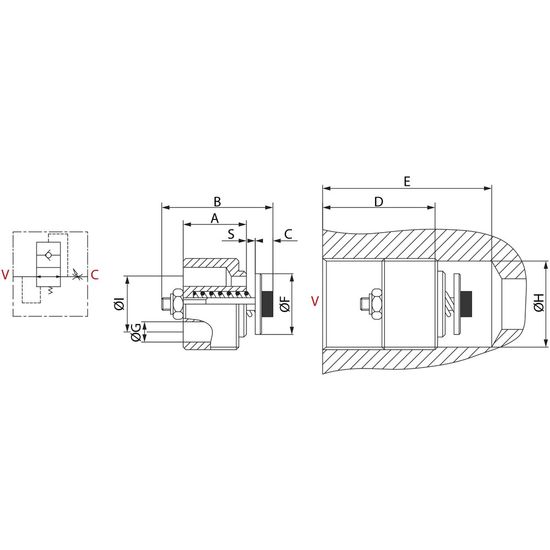

  Refer to attached image for specific dimensions:
  - A: 13 mm
  - B: 29 mm
  - C: 5 mm
  - D: 33 mm
  - E: 43 mm
  - F: 15 mm
  - G: 4.5 mm
  - H: 19 mm
  - I: 12.5 mm
  - S: 1.6 mm
