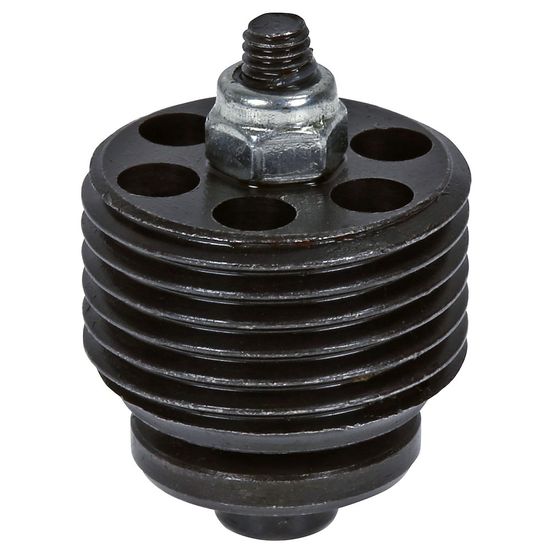

Hose break valve 3/8" - max. 50 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM030118

  Manufacturer

  CharacteristicsType: VUBA
  Max pressure: 350 bar

  Technical specification:
  - type VUBA
  - prevents backflow of oil if hydraulic hose or pipe breaks, simultaneously stops machine movement
  - material polished steel
  - max. flow 50 l/min
  - max. pressure 350 bar
  - corresponding valve body FM277197

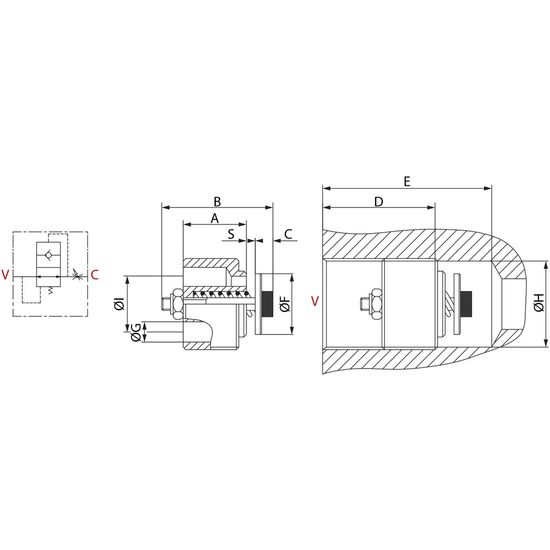

  See attached image for specific dimensions:
  - A: 10.5 mm
  - B: 23 mm
  - C: 5 mm
  - D: 31 mm
  - E: 40 mm
  - F: 12.5 mm
  - G: 3.5 mm
  - H: 15.2 mm
  - I: 10.5 mm
  - S: 1.2 mm
