Hydraulic valve 1/2" - max. 70 l/min 2 sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM990056

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 2 sections
  1x single-acting, 1x double-acting

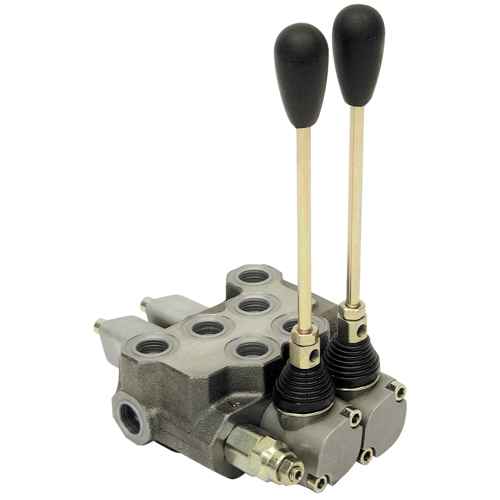

  Valve package with spring return to mid-position. The valve package comes with levers (with multiple mounting options) and
  adjustable relief valve. The valve can be connected in series with part number: FM832004

  Technical specification:
  - type: 2 sections
  - size: 1/2"

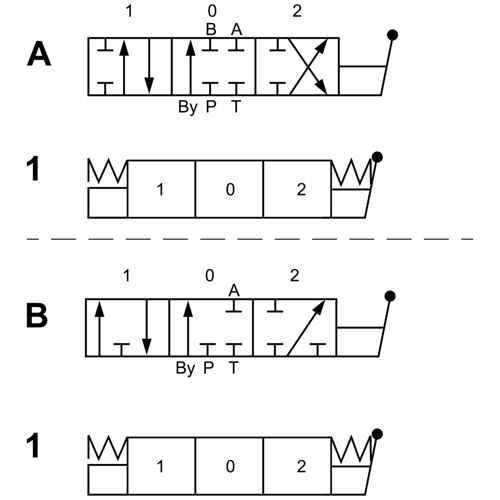

  - sections: 1 x single-acting, 1 x double-acting
  - normal flow rate: 50 l/min
  - max. flow rate: 70 l/min
  - working pressure: 280 bar
  - max. pressure: 300 bar
  - max pressure on return side: 80 bar
  - relief valve set at 140 bar

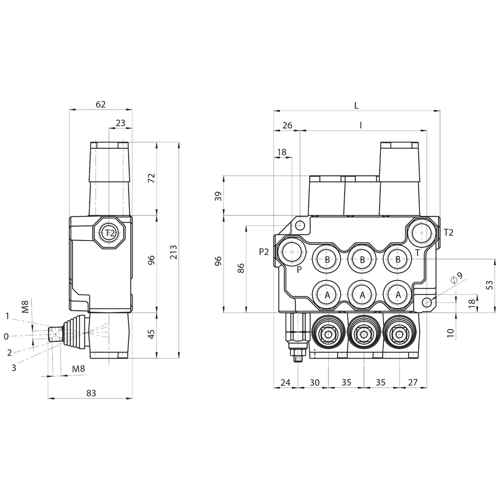

  - dimensions L: 129.0 mm
  - dimensions W: 90.0 mm
  - weight: 4.2 kg
