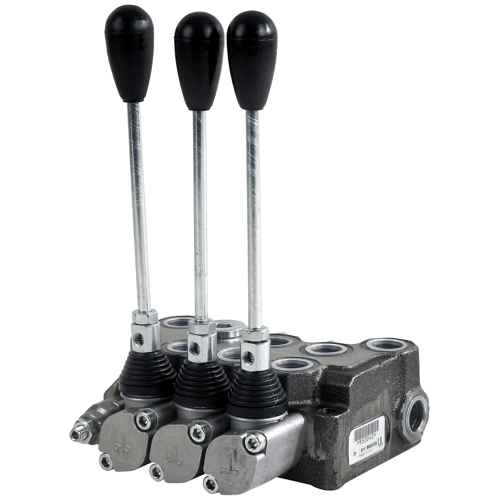

Hydraulic valve 1/2" - max. 70 l/min 3 sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM990057

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 3 sections
  1x single-acting, 2x double-acting

  Valve package that returns to center position. The valve package comes with levers (with multiple mounting options) and
  adjustable pressure relief valve. The valve can be series connected with part number: FM832004

  Technical specification:
  - type: 3 sections
  - size: 1/2"
  - sections: 1x single-acting, 2x double-acting
  - normal flow rate: 50 l/min
  - max. flow rate: 70 l/min
  - operating pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - pressure relief valve set at 140 bar

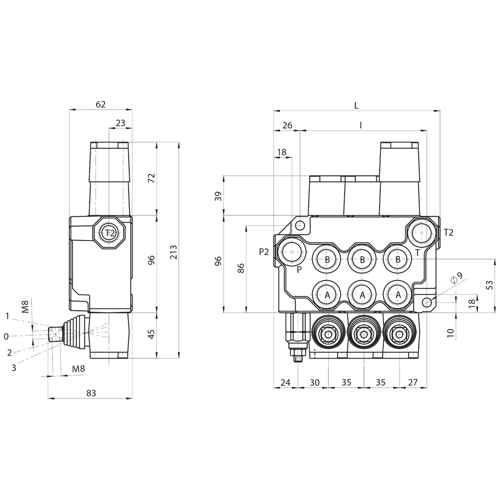

  - dimensions L: 164.0 mm
  - dimensions P: 125.0 mm
  - weight: 5.5 kg
