Hydraulic valve 3/8" - max. 35 l/min 2 sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM985006

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: 2 sections

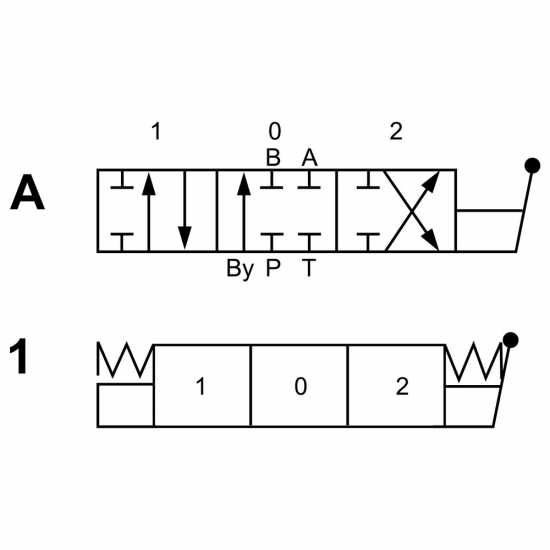

  Double-acting

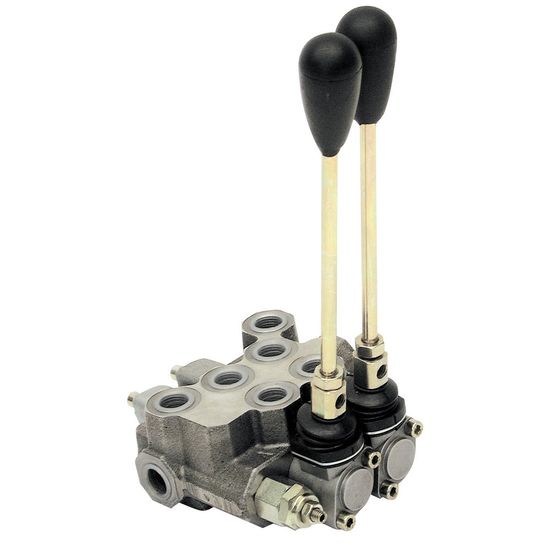

  Valve pack that returns to neutral position. The valve pack comes with levers (with multiple mounting options) and
  adjustable relief valve. The valve can be series-connected with part number: FM832019

  Technical specification:
  - type: 2 sections
  - size: 3/8"
  - sections: double-acting
  - normal flow: 25 l/min
  - max. flow: 35 l/min
  - operating pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

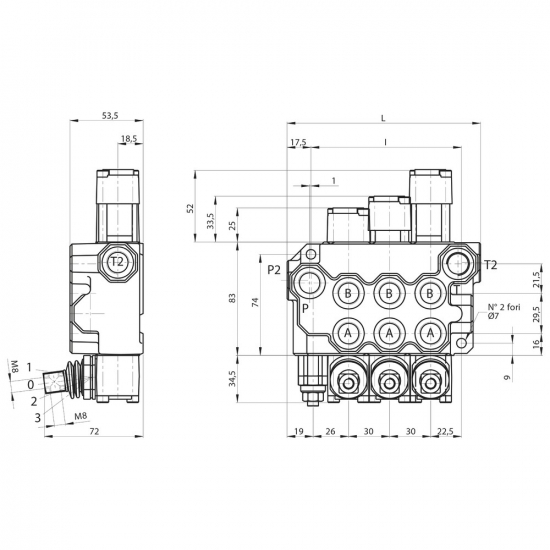

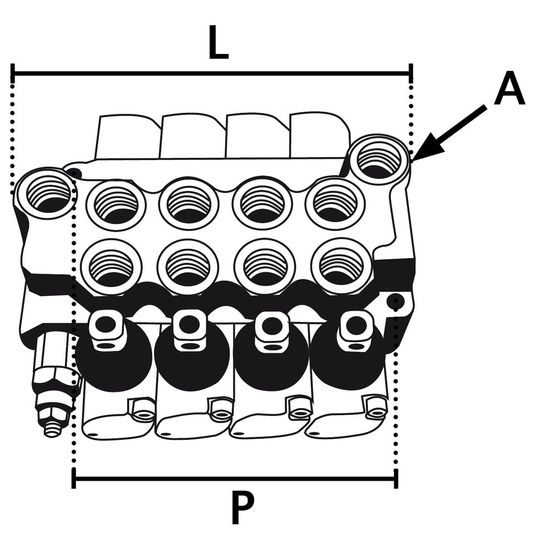

  - dimensions L: 111.5 mm
  - dimensions P: 80 mm
  - weight: 2.7 kg
