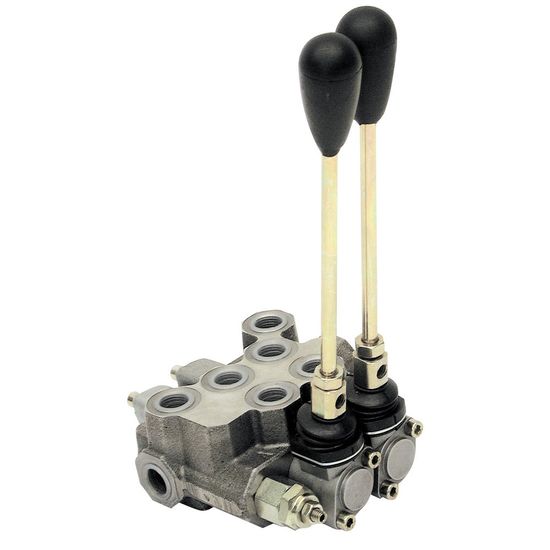

Hydraulic valve 3/8" - max. 35 l/min Type 2 sections
€259
Incl. VAT
- Info
-
Stock statusProduct IDFM985081ManufacturerBLB HYDRAULICSCharacteristicsType: 2 sections
1x single-acting, 1x double-actingValve package that returns to neutral position. The valve package comes with levers (with multiple mounting options) and
adjustable relief valve.
Technical specification:
- type: 2 sections
- size: 3/8"

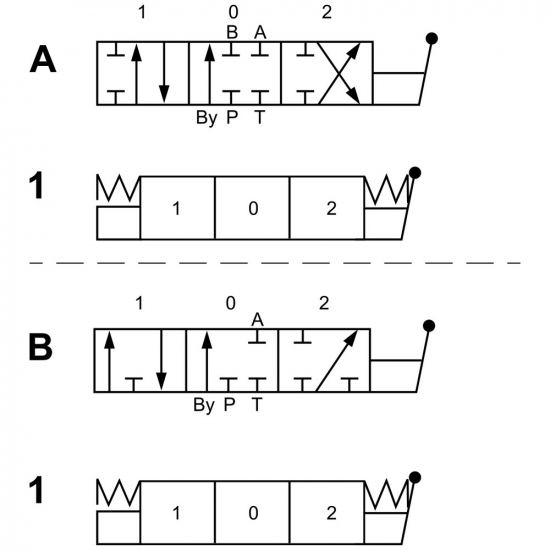

- sections: 1x single-acting, 1x double-acting
- normal flow: 25 l/min
- max. flow: 35 l/min
- working pressure: 280 bar
- max. pressure: 300 bar
- max. pressure on return side: 80 bar
- relief valve set at 140 bar

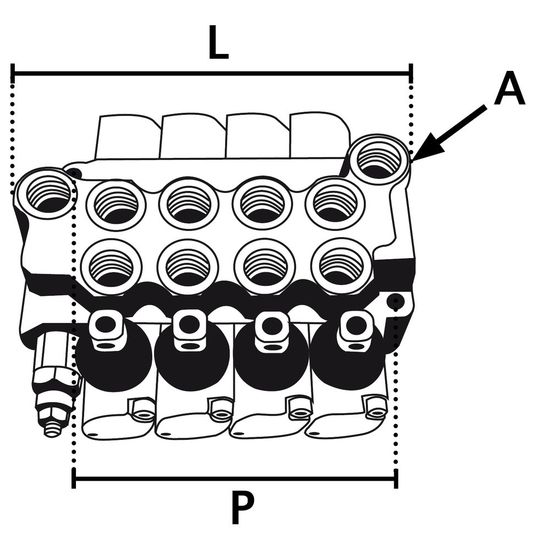

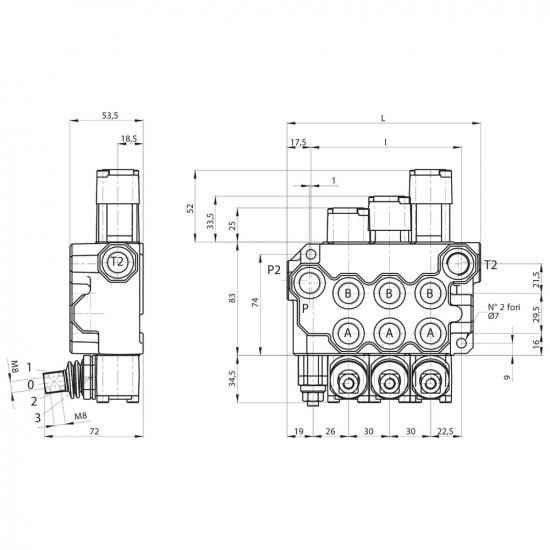

- dimensions L: 111.5 mm
- dimensions P: 80 mm
- weight: 2.7 kg - Product groups
-
