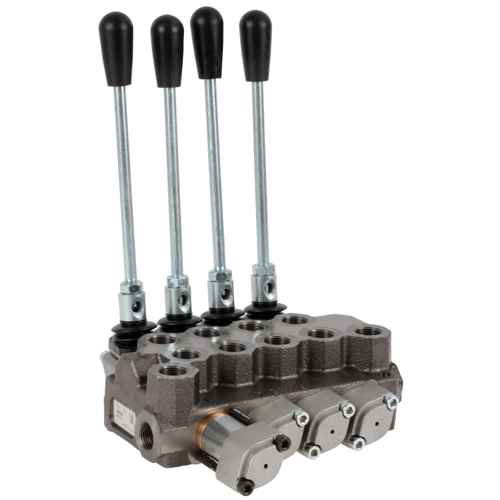

Hydraulic valve 3/8" - max. 35 l/min Type 4 sections

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM985428

  Manufacturer

  CharacteristicsType: 4 sections
  1x double-acting with float position, 3x double-acting

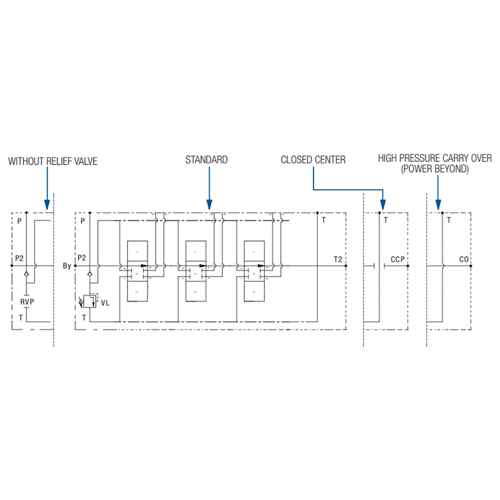

  Valve package with spring return to center. The valve package is delivered with levers (with multiple mounting options) and
  adjustable relief valve. The valve can be series connected with part number: FM832019

  Technical specification:
  - type: 4 sections
  - size: 3/8"

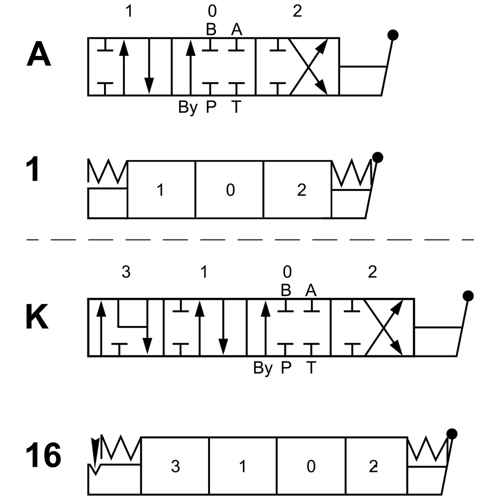

  - sections: 1 x double acting with float position, 3 x double acting
  - normal flow: 25 l/min
  - max. flow: 35 l/min
  - working pressure: 280 bar
  - max. pressure: 300 bar
  - max. pressure on return side: 80 bar
  - relief valve set at 140 bar

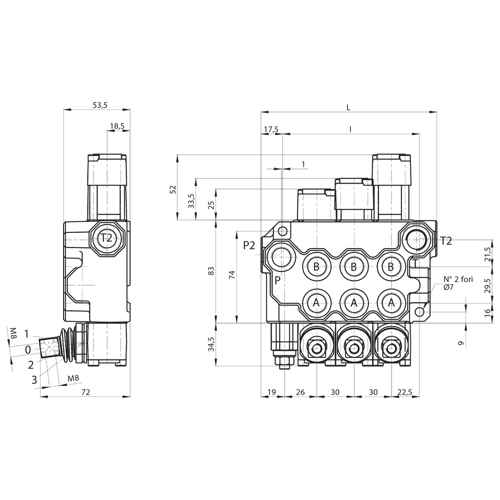

  - dimensions L: 171.5 mm
  - dimensions W: 140 mm
  - weight: 4.6 kg
