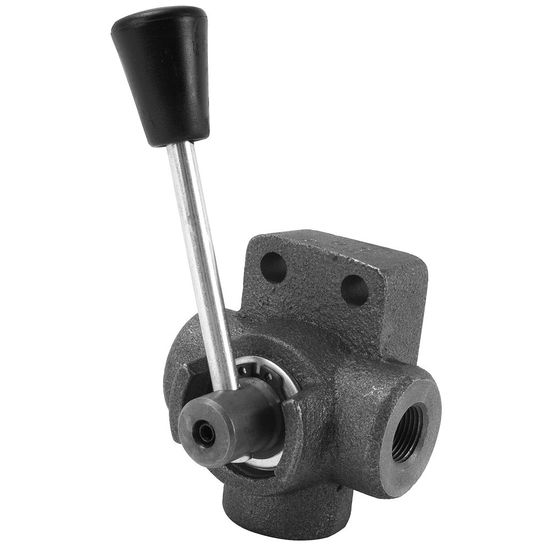

Hydraulic Valve 3/8" - max. 38 l/min open three-way valve

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM030001

  ManufacturerBLB HYDRAULICS

  CharacteristicsTwo-position selector valve
  Type: open three-way valve
  Model: D3G38A

  Model: D3G38A

  Model Explanation:
  - model D3G A is an open three-way valve: when the slide moves and one port closes, another port opens
  - model D3G C is of closed type: when the slide moves, all ports remain closed

  The two-position selector valve D3G A and D3G C is a three-way valve that enables control of the oil flow in the hydraulic system to two separate hydraulic channels.
  When this selector valve is connected to a hydraulic system, two single-acting cylinders can be used with a three-way directional control valve.
  Before pressurization, one should choose which hydraulic circuit is to be used.

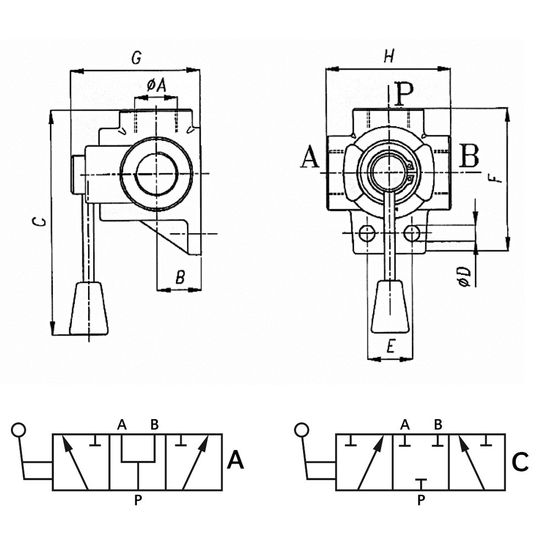

  Technical specification:
  - max. flow l/min: 38
  - max. pressure (bar): 250
  - threads A, B, P: 3/8" GAS
  - B: 21.05 mm
  - C: 140 mm
  - D: 8.5 mm
  - E: 26 mm
  - F: 80 mm
  - G: 63 mm
  - H: 69 mm
