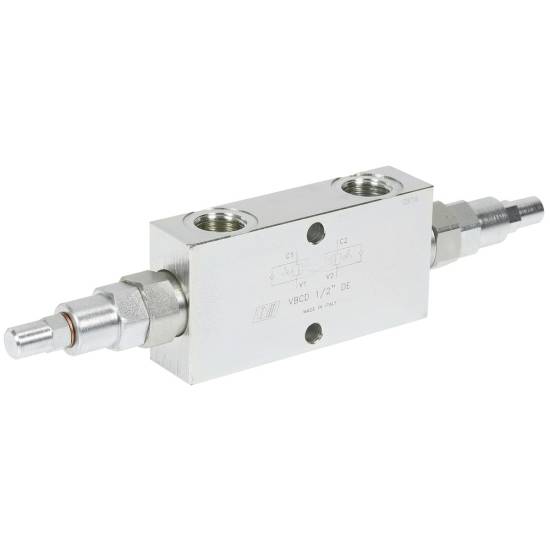

Load-Holding Valve 1/2" - max. 50 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80430

  ManufacturerOLEODINAMICA MARCHESINI

  CharacteristicsDouble-acting
  Type: Vbcdde

  A relief valve for dual pressure is used to handle a heavy load in a controlled manner.
  One working channel does not open until the control pressure for the other channel exceeds the set minimum value.

  Technical specification:
  - type VBCD DE
  - material galvanized steel
  - BunaN seal
  - connection V C: G 1/2"
  - pilot ratio 1:3.1
  - max. flow rate 50 l/min
  - max. pressure 350 bar (standard setting 320 bar)
