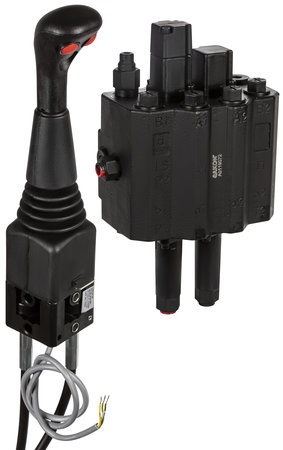

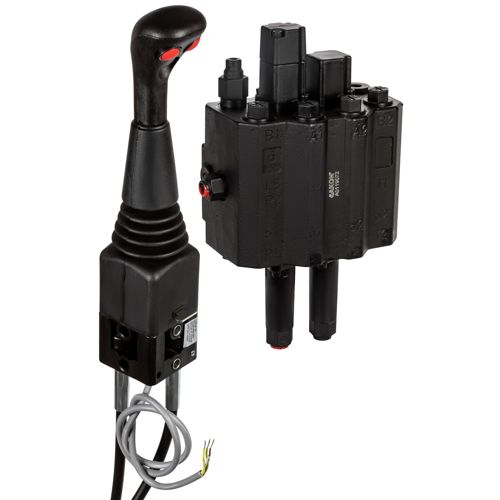

LOADER PACKAGE FRONT LOADER 90L LS+2M CABLE+JOYSTICK

• Info
• Stock status

  Product IDNV452SETLS

  Manufacturer

  CharacteristicsType: 2 sections
  Working pressure: 250 bar


  Technical specification:
  - cable-controlled loader package for front loader

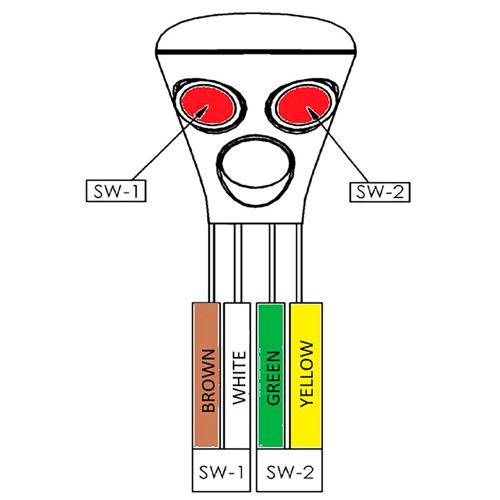

  - includes joystick with 2 switches and lock, 2 m cables
  - load-sensitive (LS)
  - adjustable safety valve
  - 2 sections (float position in one, 4 positions)
  - working pressure 250 bar
  - flow 90 l/min

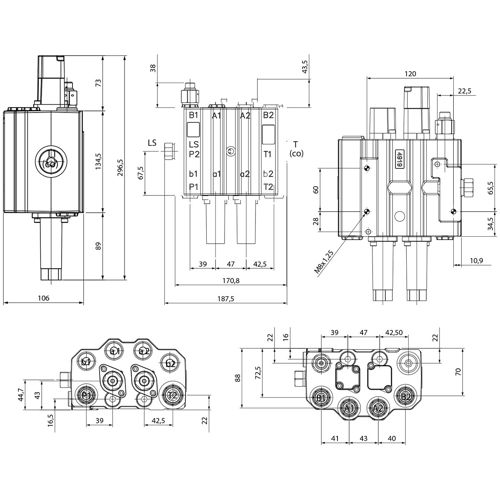

  - LS port G 1/4"
  - P1/P2/T1 port G 1/2"
  - A/B working port G 1/2"
  - T2/T(CO) port G 3/4"

  Suitable cables are available in related products.
  LS valve should be connected using a hose from the LS port to the pump control




  Installation instructions NV452SETOP / NV452SETLS

  Recommended hydraulic oil temperature -20 to +90°C.

  Recommended oil cleanliness class 20/18/15 ISO4406.

  Number of working spindles 2 pcs

  Float function with lock position for working spindle 1.

  Max flow 90 ltr/min

  Max working pressure 250 bar

  Movements:

  Pulling the joystick towards you raises the loader.

  Pushing the joystick away lowers the loader.

  Pushing the joystick forward locks it in the float position, allowing the loader to adapt to ground contours.

  Turning left tilts the bucket downward.

  Turning right angles the bucket upward.

  Mechanical assembly:

  Mount the valve package securely to prevent movement or loosening.

  Securely mount the joystick in an ergonomic position for easy, safe, and ergonomic use.

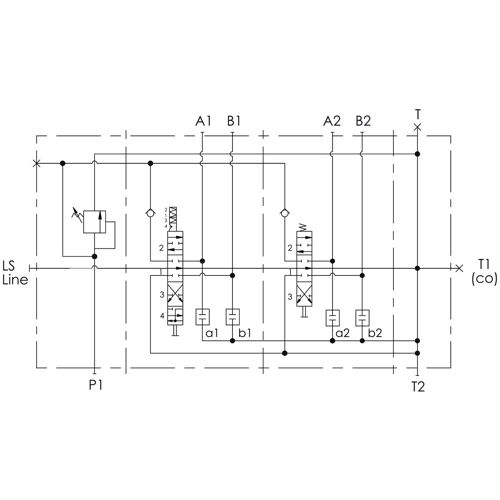

  Hydraulic connection:

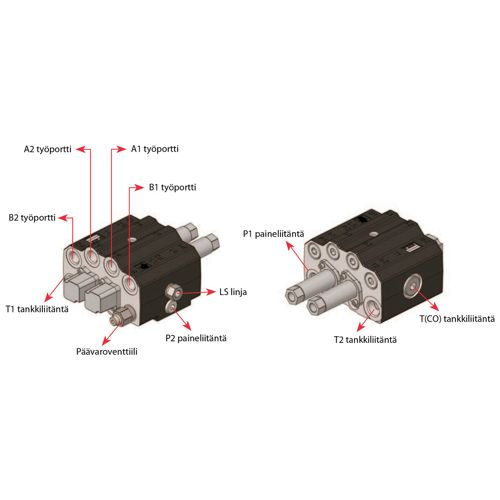

  A1 Connects to loader lift. B1 Connects to loader lower.

  A2 Connects to tilt up the bucket. B2 Connects to tip the bucket.

  T2 or T1 connects to the tank line/return.

  T(CO) is a serial port with a connected series nipple in the OP model. Connect the pressure line that goes to the tractor's regular hydraulic valve package here.

  If no additional hydraulic valve will be connected after this loader valve, the series port T(CO) should also be connected to the tank line.

  P1/P2 pressure line (pressure inlet), connect the pressure line from the hydraulic pump here.

  The LS model does not have a serial nipple, only a tank line.

  (The LS line (only in the load-sensing LS model) is connected to the machine's own LS circuit.
