LOADER PACKAGE FRONT LOADER 90L OP+2M CABLE+JOYSTICK

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDNV452SETOP

  Manufacturer

  CharacteristicsType: 2 sections
  Working pressure: 250 bar


  Technical specification:

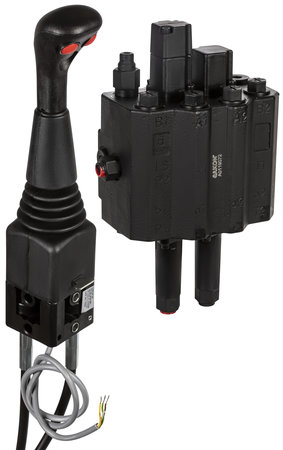

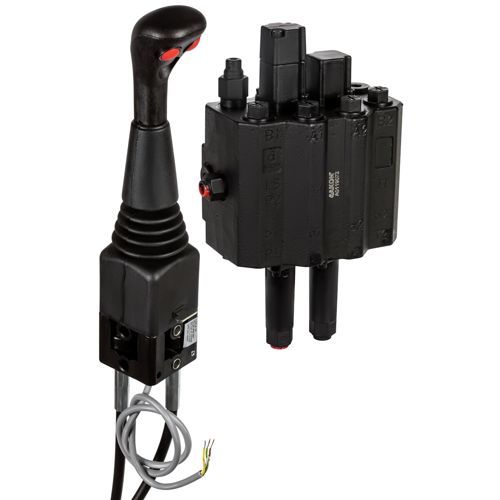

  - cable-controlled loader package for front loader

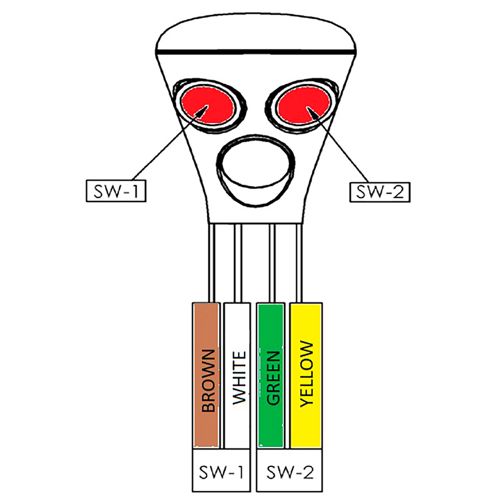

  - includes joystick with 2 switches and lock, 2 m cables and series nipple
  - round pumping
  - adjustable safety valve
  - 2 sections (float position in one, 4 positions)
  - working pressure 250 bar
  - flow 90 l/min

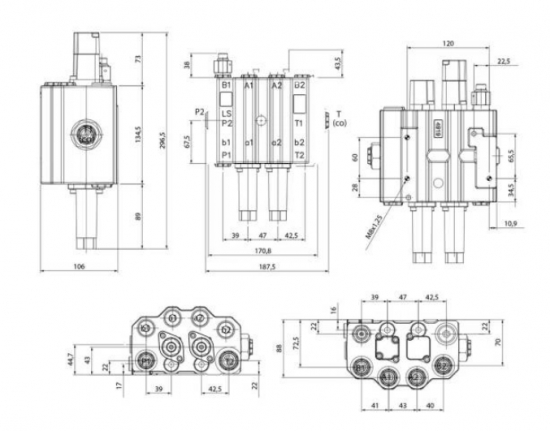

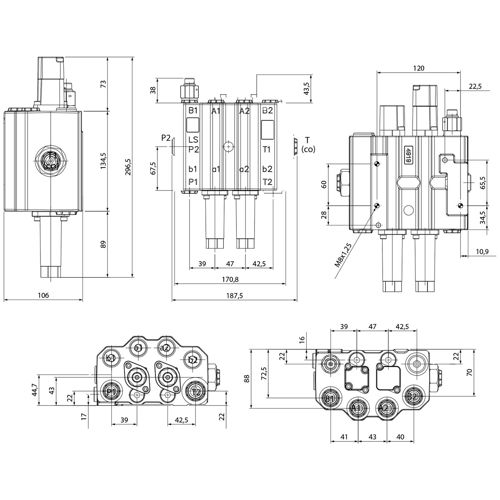

  - P1/P2/T1-port G 1/2"
  - A/B-working port G 1/2"
  - T2/T(CO)-port G 3/4"

  Suitable cables are available in related products.
  Other lengths are available for purchase.




  Assembly instructions for NV452SETOP / NV452SETLS

  Recommended hydraulic oil temperature -20 to +90°C.

  Recommended oil cleanliness class 20/18/15 ISO4406.

  Number of working spindles 2

  Float function with lock position for working spindle 1.

  Max flow 90 ltr/min

  Max working pressure 250 bar

  Movements:

  Pulling the joystick towards you raises the loader.

  Pushing the joystick away from you lowers the loader.

  By pushing the joystick furthest forward, it locks in the float position, allowing the loader to adapt to the ground contours.

  When maneuvering left, the bucket tilts downward.

  When maneuvering to the right, the bucket tilts upward.

  Mechanical assembly:

  Mount the valve package securely to prevent movement or loosening.

  Mount the joystick securely in an ergonomically good position, making it easy, safe, and ergonomic to use.

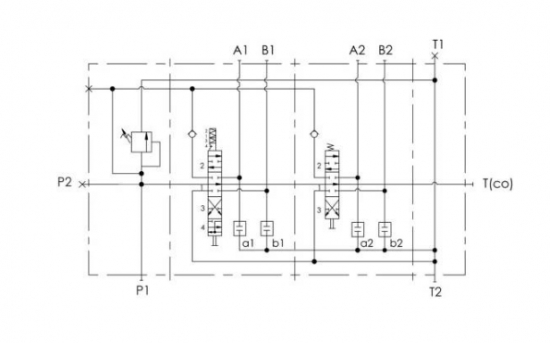

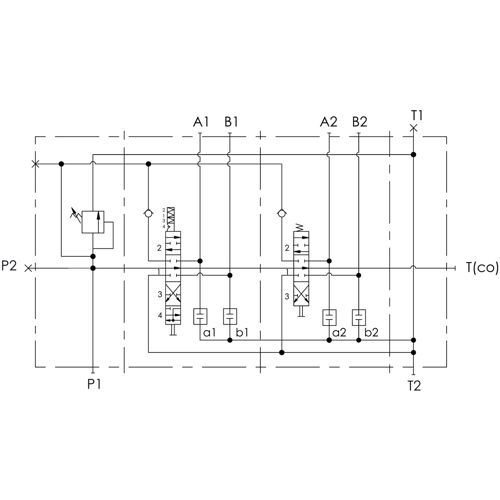

  Hydraulic connection:

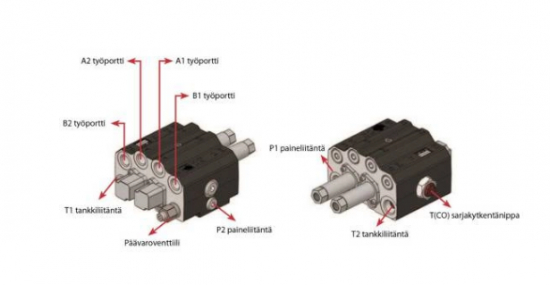

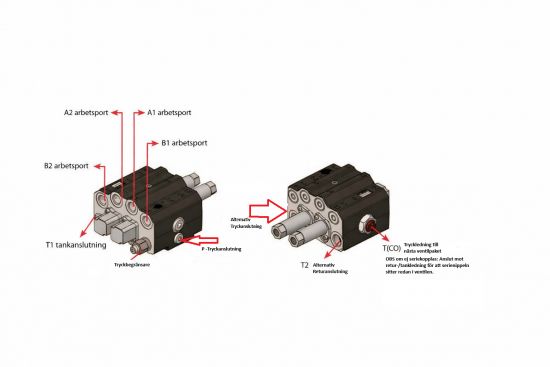

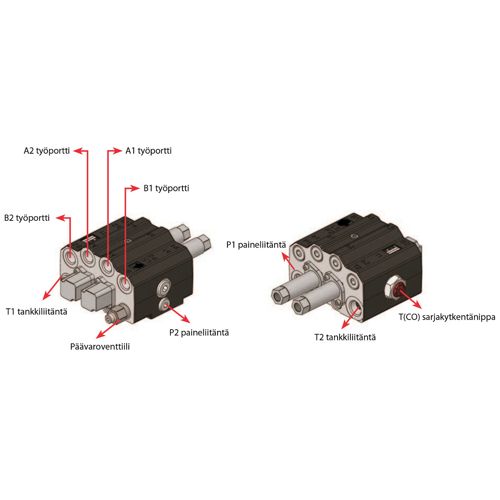

  A1 Connects to loader lift. B1 Connects to loader lower.

  A2 Connects to tilt bucket up. B2 Connects to tip bucket.

  T2 or T1 connects to the tank line/return.

  T(CO) is a serial port with a connected series nipple in the OP model. Here, the pressure line is connected, which continues to the tractor's regular hydraulic valve package.

  If no additional hydraulic valve will be connected after this loader valve, the T(CO) series port should also be connected to the tank line.

  P1/P2 pressure line (pressure inlet), here the pressure line from the hydraulic pump is connected.

  The LS model does not have a serial nipple, but a tank line.

  (LS line (only in the load-sensing LS model) is connected to the machine's own LS circuit.
