Lock Valve 1/4" - max. 20 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80220

  Manufacturer

  CharacteristicsType: VBPSE L
  Max pressure: 350 bar

  With a lock valve, the cylinder can be locked in a certain position.

  Technical specification:
  - type: VBPSE L
  - material zinc-coated steel
  - BunaN-seal
  - connection V1 V2: G 1/4"
  - connection C1 C2: G 1/4"
  - max. flow: 20 l/min
  - max. pressure: 350 bar
  - opening pressure: 4 bar

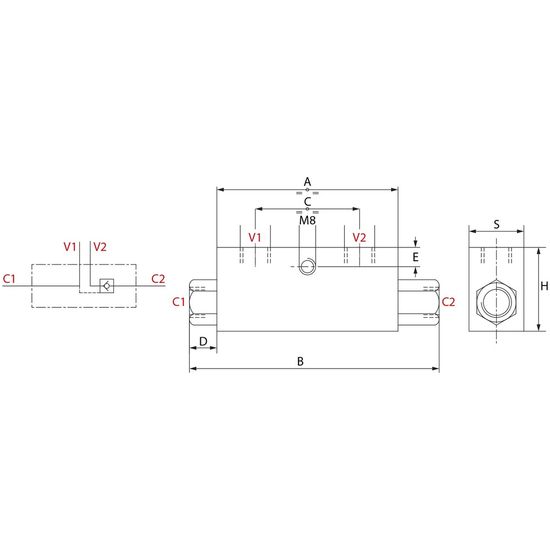

  See attached image for specific dimensions:
  - A: 64 mm
  - B: 106,5 mm
  - C: 36 mm
  - D: 18,5 mm
  - E: 8 mm
  - H: 40 mm
  - S: 30 mm
