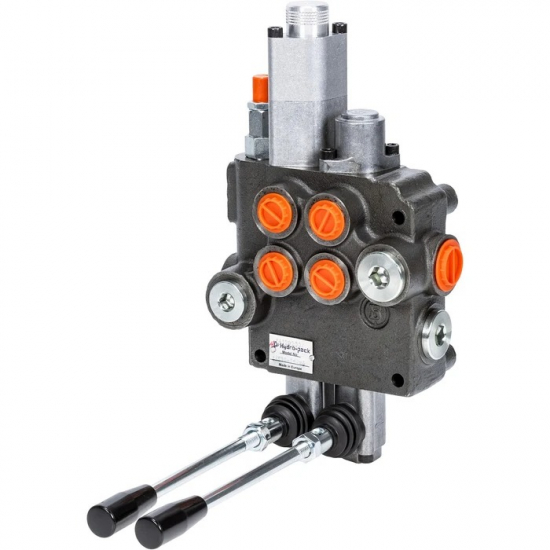

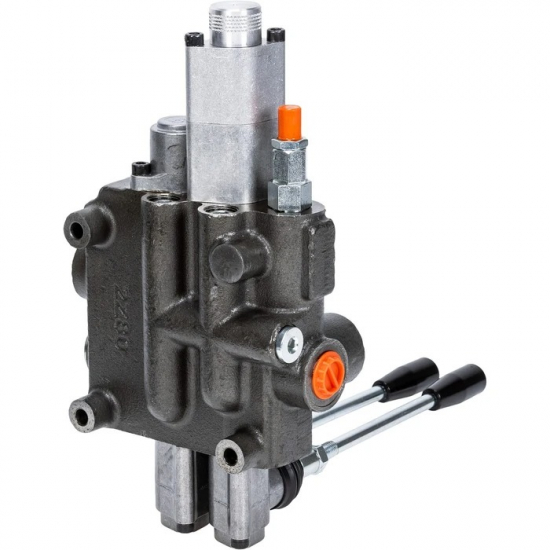

Log Splitter Valve 2-spool - max. 80 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM990096

  Manufacturer

  Characteristics

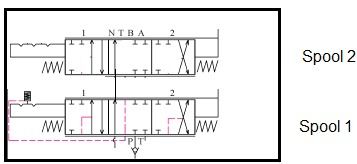

  Log splitter valve with two spool control levers: the first is designed for the splitting function and the second for auxiliary equipment such as a conveyor.
  The splitting side lever features position lock in both directions and automatic return to center position when the operation is complete.
  The second lever has a position lock, allowing for continuous operation of accessories such as a conveyor.

  Technical specification:
  - Nominal flow rate: 80 liter/min
  - Max. Pressure: P: 315 bar T: 50 bar A-B: 300 bar
  - Fluid temperature range: -10 oC … +80 oC
  - Working fluid: Mineral based hydraulic oil
  - P: ½”
  - T: 3/4”
  - A and B: ½”
  - N 3/4”(serial port)
