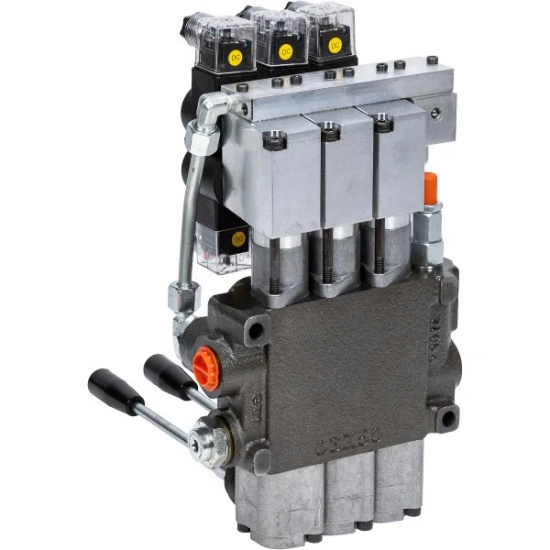

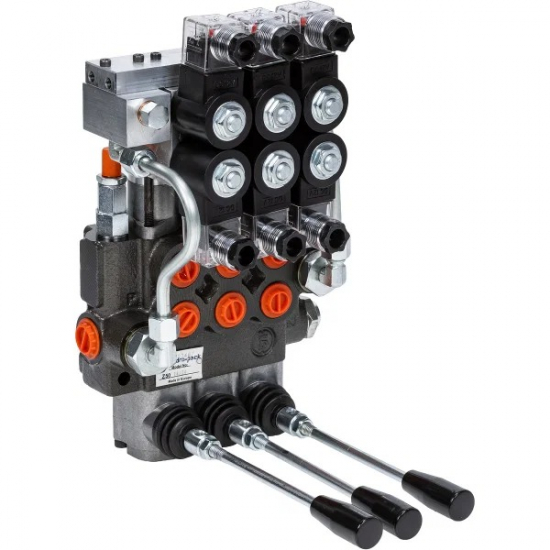

P40 Solenoid Directional Valve 3/8" - max. 50 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDP401A3EHOR

  Manufacturer

  CharacteristicsElectro-hydraulic directional control valve with control levers
  Double-acting with closed center position

  - Electro-hydraulic directional control valve with control levers
  - Suitable for applications where functions are controlled electrically and, when required, manually
  - On/off function
  - Adjustable main pressure relief valve
  - Possibility of series connection via N (CO) port G 1/2"
  - Material: cast iron valve body, chrome-plated carbon steel spools, NBR seals
  - Includes 12 V coils

  Technical data:
  - 3-section valve
  - Function: double-acting with closed center position
  - Max. flow: 40 l/min
  - Max. working pressure: 300 bar
  - Min. working pressure: 10 bar
  - Max. return line pressure: 50 bar
  - Operating temperature: -20...+80 °C
  - P port: G 1/2"
  - A/B ports: G 3/8"
  - T1/N port: G 1/2"
