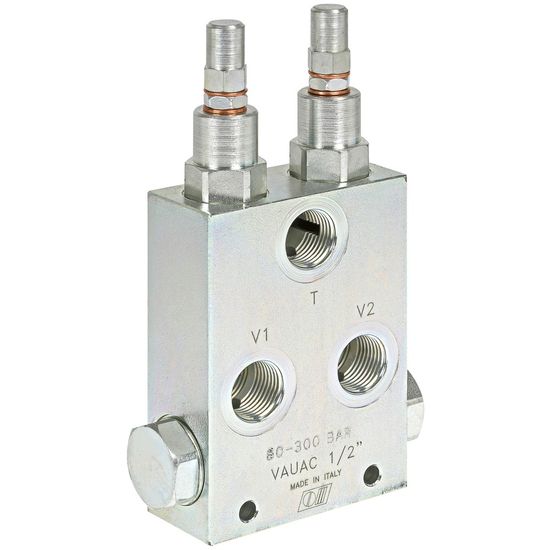

Pressure Limiting Valve 1/2" - max. 70 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80508-300

  Manufacturer

  CharacteristicsDouble-acting
  Type: VAUAC

  The double pressure relief valve is used to protect the system from damage due to overpressure.
  The valve has separate pressure lines and a common tank connection.

  Technical specification:
  - type VAUAC
  - material zinc-coated steel
  - BunaN-seal
  - setting range 80 - 300 bar (factory setting 150 bar)
  - connection V1 V2: G 1/2"
  - connection T: G 1/2"
  - max. flow 70 l/min

  See image no. 2 for specific dimensions:
  - A: 80 mm
  - B: 40 mm
  - C: 42 mm
  - D: 102 mm
  - E: 48 mm
  - F: 24 mm
  - G: 8 mm
  - H: 50 mm
  - I: 112/174 mm
  - S: 35 mm
