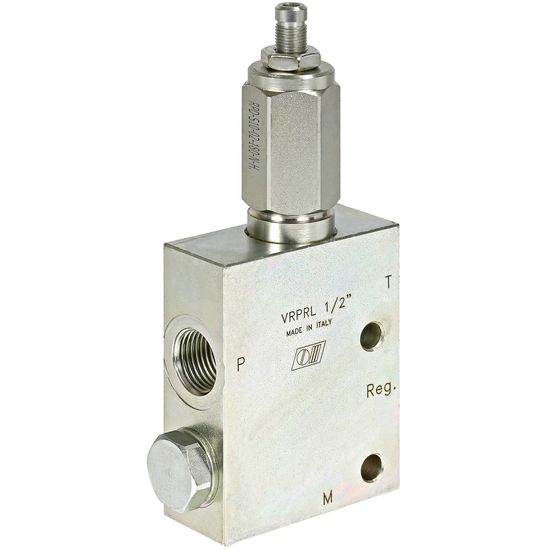

Pressure reducing valve 1/2" - max. 30 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80707-165

  Manufacturer

  CharacteristicsType: VRPRL
  Adjustment range: 30-165 bar

  The pressure reducing valve reduces the pressure in the system.
  The valve gradually lowers the incoming pressure to the desired level and
  keeps it steady regardless of variations in incoming pressure.

  Technical specification:
  - type: VRPRL
  - material: galvanized steel
  - BunaN seal
  - adjustment range: 30 - 165 bar
  - connection P T: G 1/2"
  - max. flow: 30 l/min
  - max. pressure: 350 bar

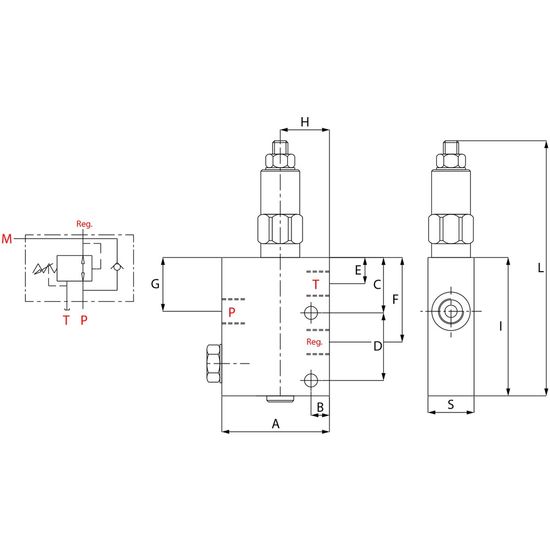

  Refer to attached image for specific measurements:
  - A: 70 mm
  - B: 12 mm
  - C: 36 mm
  - D: 44 mm
  - E: 17 mm
  - F: 55 mm
  - G: 35 mm
  - H: 32 mm
  - I: 90 mm
  - L: 168 mm
  - S: 30 mm
