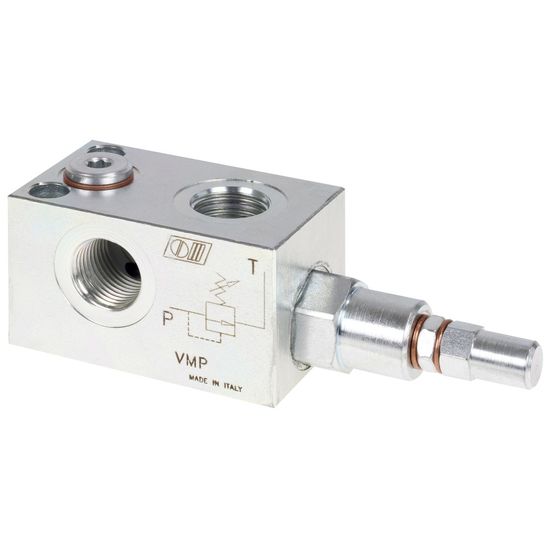

Pressure relief valve 3/4" - max. 70 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80720-300

  Manufacturer

  CharacteristicsType: VMP
  Adjustment range: 80-300 bar

  The pressure reducing valve is used to protect the system from damage due to overpressure.
  The relief valve is factory set at 150 bar but can be adjusted from 80 to 300 bar.

  Technical specification:
  - type: VMP
  - material: zinc-coated steel
  - BunaN sealing
  - connection P T: G 3/4"
  - max. flow rate: 70 l/min

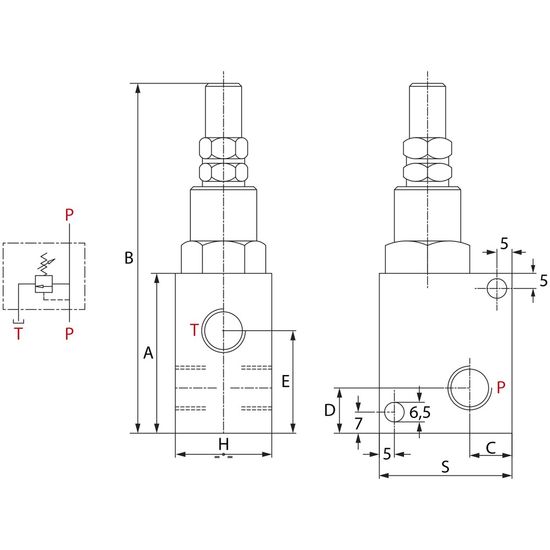

  Refer to the attached image for specific dimensions:
  - A: 92 mm
  - B: 154 mm
  - C: 17,5 mm
  - D: 35 mm
  - E: 68 mm
  - F: 10 mm
  - G: 32 mm
  - H: 8,5 mm
  - I: 50 mm
  - S: 50 mm
