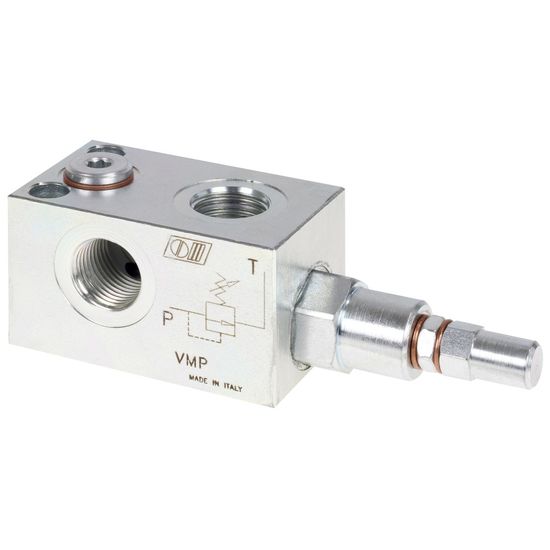

Pressure relief valve 3/8" - max. 45 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80700-180

  Manufacturer

  CharacteristicsType: VMP
  Setting range: 10-180 bar

  The pressure reducing valve is used to protect the system from damage due to overpressure.
  The relief valve is factory set at 90 bar but can be adjusted from 10 to 180 bar.

  Technical specification:
  - type: VMP
  - material: zinc-coated steel
  - BunaN sealing
  - connection P T: G 3/8"
  - max. flow rate: 45 l/min

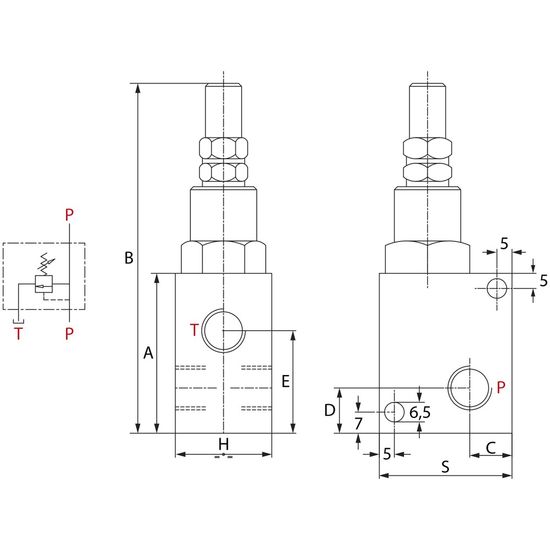

  Refer to the attached image for specific dimensions:
  - A: 72 mm
  - B: 134 mm
  - C: 15 mm
  - D: 26 mm
  - E: 49,5 mm
  - F: 8,5 mm
  - G: 26 mm
  - H: 6,5 mm
  - I: 40 mm
  - S: 40 mm
