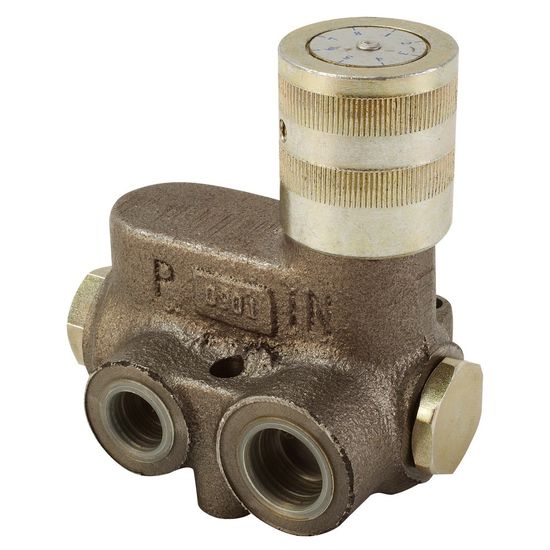

Priority valve - 40 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM030320

  ManufacturerBLB HYDRAULICS

  CharacteristicsType: RF40P G
  Max pressure: 250 bar

  Flow control valve RF 40P or RF 70P is designed to adjust or split the flow of the pump to two targets
  so that the primary target receives the set flow and any excess flow is directed to the secondary target or to the tank.
  Flow is adjusted by the adjustment knob on the top of the valve.

  Please note that incorrect use of the flow control valve may heat up the oil.
  This can occur, for example, if a small portion of high flow is directed to the primary target under high pressure, and excess flow is directed to the tank.

  Technical specification:
  - type: RF40P G
  - adjustment range: 0.2 - 40 l/min
  - max. pressure: 250 bar
  - inlet connection G: 1/2" R
  - working connection H: 3/8" R
  - outlet connection I: 1/2" R

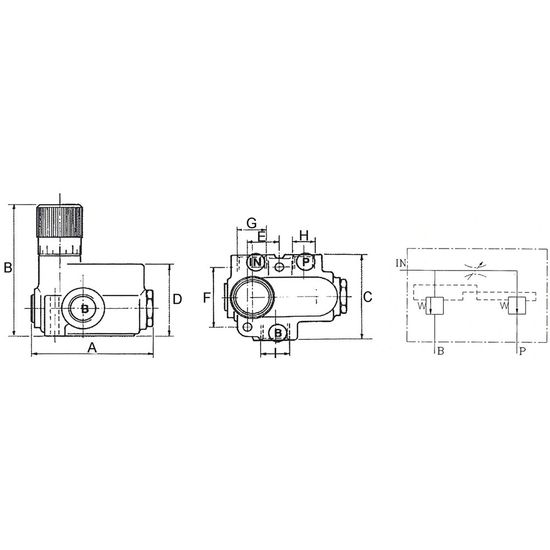

  Refer to the attached image for specific measurements:
  - A: 87 mm
  - B: 98 mm
  - C: 65 mm
  - D: 53 mm
  - E: 46 mm
  - F: 22.5 mm
