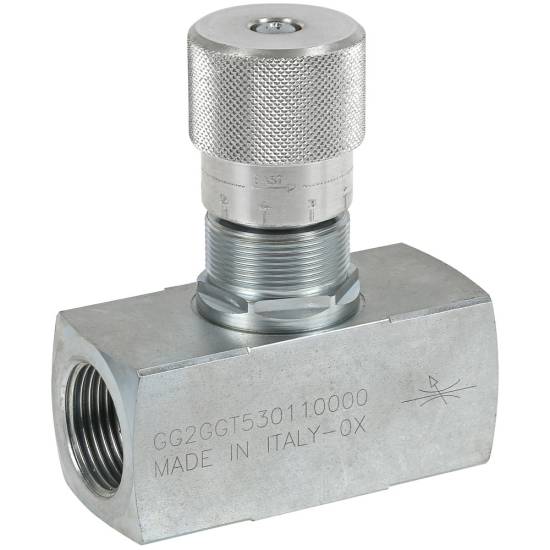

Restrictor Valve 1" - 150 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHBD16

  ManufacturerGEMELS

  CharacteristicsType: BD
  Max. pressure: 350 bar

  Valve that regulates the flow in both directions.
  The flow opening is adjusted with an adjustment wheel that can also be locked.

  Technical specifications:
  - type: BD
  - DIN ISO 228 BSP
  - material: carbon steel
  - hose: DN25
  - connection: G 1"
  - max. flow: 150 l/min
  - max. pressure: 350 bar
  - weight: 1.5 kg

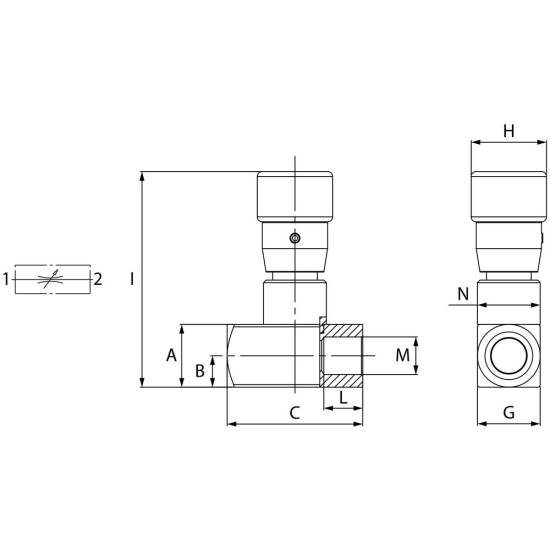

  Refer to the attached image for specific dimensions:
  - A: 45 mm
  - B: 22.5 mm
  - C: 102 mm
  - G: 45 mm
  - ØH: 42 mm
  - I: 115 mm
  - L: 24 mm
  - ØM: G 1"
  - ØN: M 35x1.5 mm
