  Product IDR932500581

  ManufacturerBOSCH REXROTH

  CharacteristicsType: SD
  Max pressure: 350 bar

  Valve that regulates flow in both directions.
  Turn the valve to adjust the flow and lock it with a nut.

  Technical specifications:
  - type: SD
  - material zinc-coated steel
  - connection A B: G 1/2"
  - max. flow rate: 45 l/min
  - max. pressure: 350 bar

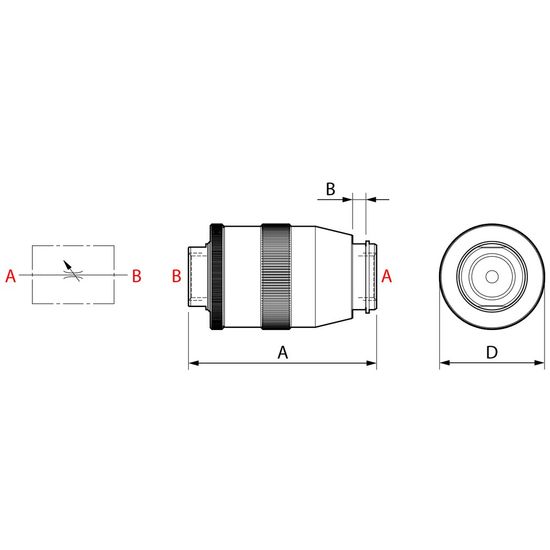

  Refer to attached image for specific measurements:
  - A: 86 mm
  - B: 8 mm
  - D: 48 mm
