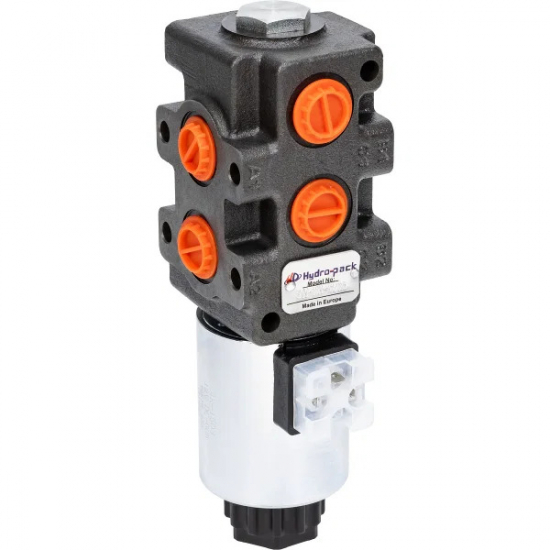

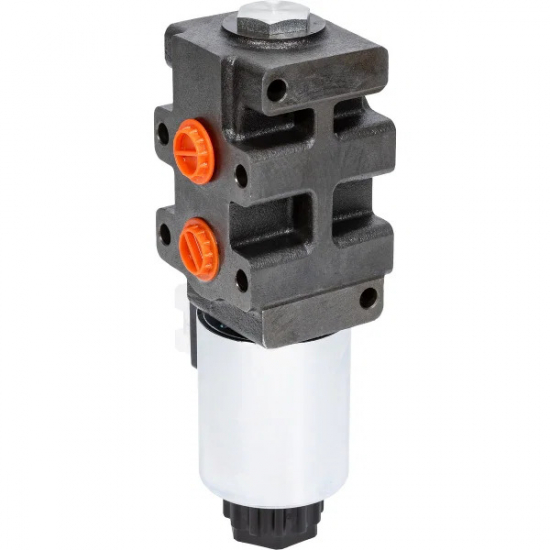

Selector Valve 6/2 90L 1/2 12V

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDFM2505

  ManufacturerHydro-Pack

  CharacteristicsMax. flow 90 l/min

  - 6/2 valve (selector valve)
  - The selector valve allows you to easily increase the number of hydraulic lines on the machine and get more use from the hydraulics. On most machines, installing additional valves is very expensive and complicated, so this valve offers a cost-effective solution.
  - The valve is controlled by an electrical switch, which can be either a push button or a toggle switch.
  - Applications: machinery, feed cutters, various front and rear loaders, hydraulic extension arms and tilt regulators, and other similar hydraulic auxiliary equipment.
  - The valve can also be mounted directly on the machine. It is stackable, which means another identical valve can be connected in series, giving the hydraulics two additional lines.
  - When connecting one or more valves together, it is recommended to use bolts or threaded rods of at least strength class 8.8.

  Technical data:
  - Voltage 12 V
  - Connections 1/2" BSP
  - Max. flow 90 l/min
  - Max. pressure 280 bar
  - De-energised (neutral position) flow A1->B1 and A2->B2
  - Energised (electrically activated) flow A1->C1 and A2->C2
