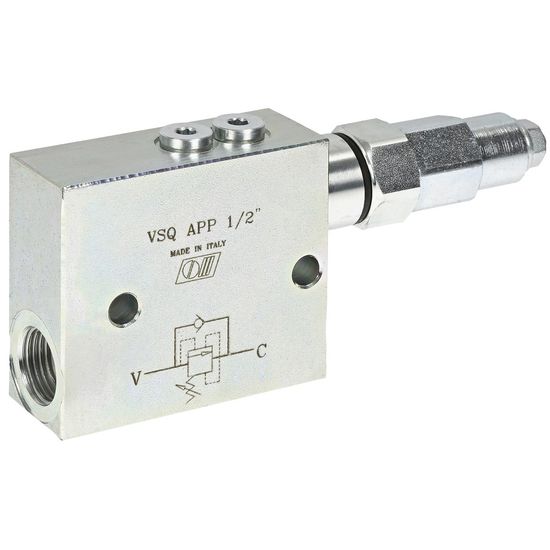

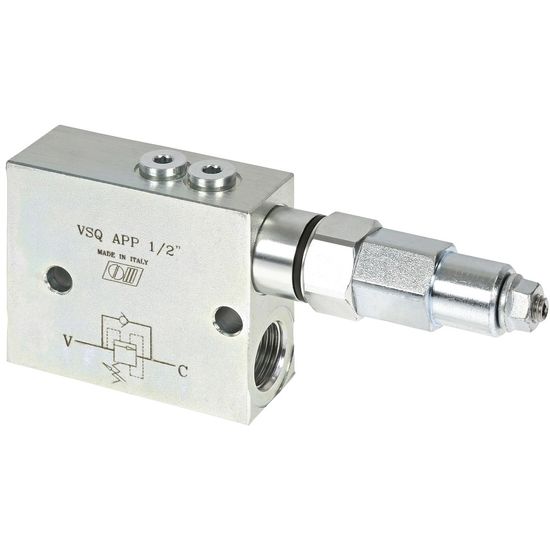

Sequence valve 1/2" - max. 70l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80662-180

  Manufacturer

  CharacteristicsType: VSQAPP
  Max. pressure: 350 bar

  The sequence valve adjusts the flow direction of oil when the system has reached a certain pressure level.
  The valve then redirects the oil from the first function to the next function.

  Technical specifications:
  - type: VSQAPP
  - material: galvanized steel
  - BunaN seal
  - adjustment range: 10 - 180 bar (factory setting 90 bar)
  - connection CV: G 1/2"
  - max flow: 70 l/min
  - max pressure: 350 bar

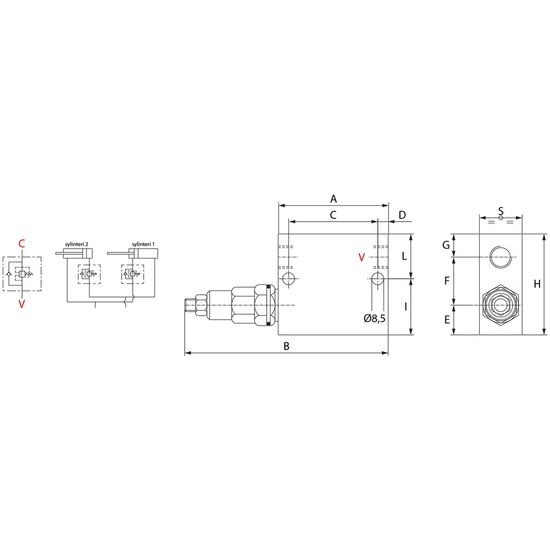

  Refer to the attached image for specific dimensions:
  - A: 80 mm
  - B: 155 mm
  - C: 55 mm
  - D: 18 mm
  - E: 19 mm
  - F: 36 mm
  - G: 15 mm
  - H: 37 mm
  - I: 33 mm
  - L: 70 mm
  - S: 30 mm
