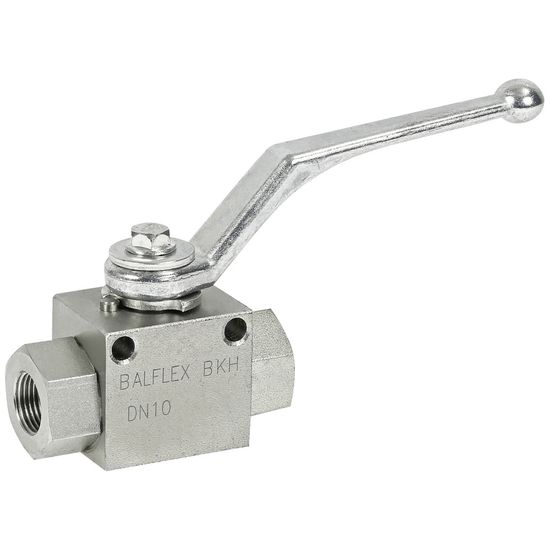

Shut-off valve BSP 1/2"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDBKH08

  Manufacturer

  CharacteristicsType: RS 2
  Max pressure: 500 bar

  Check valve to block the flow to a specific function.

  Technical specification:
  - type: RS 2
  - design: ball valve
  - material galvanized steel
  - BunaN seal / OPM
  - hose DN 13
  - connection A P: G 1/2"
  - max. pressure 500 bar

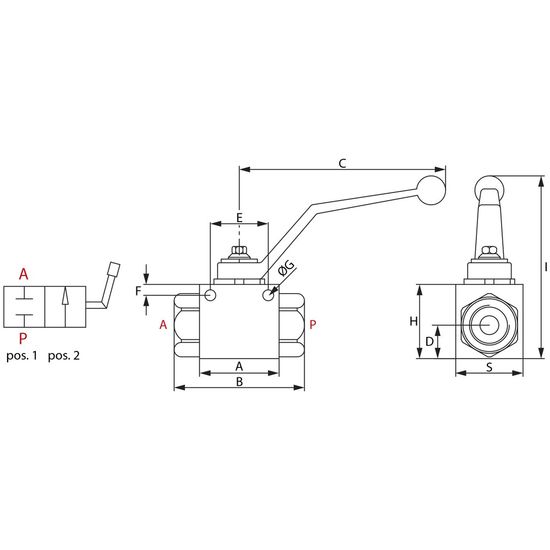

  See image no. 2 for specific dimensions:
  - A: 48.5 mm
  - B: 83 mm
  - C: 110 mm
  - D: 17.5 mm
  - E: 36 mm
  - F: 5 mm
  - G: 5.25 mm
  - H: 40 mm
  - I: 95 mm
  - S: 40 mm
