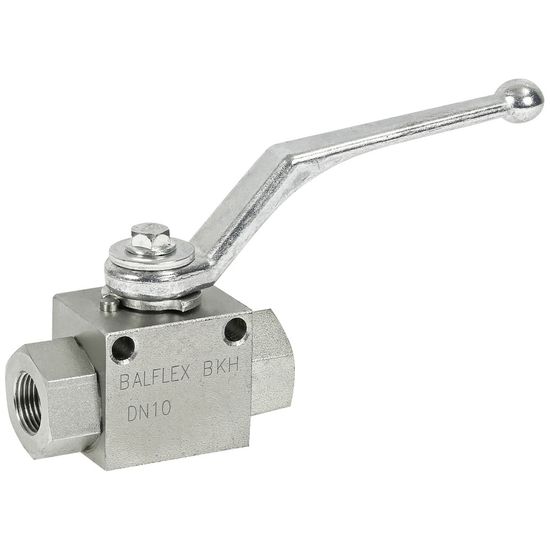

Shut-off valve BSP 1/4"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDBKH04

  Manufacturer

  CharacteristicsType: RS 2
  Max pressure: 500 bar

  Check valve to block flow to a specific function.

  Technical specification:
  - Type: RS 2
  - Design: ball valve
  - Material: galvanized steel
  - BunaN seal / OPM
  - Hose DN 6
  - Connection A P: G 1/4"
  - Max. pressure 500 bar

  See image 2 for specific measurements:
  - A: 42.5 mm
  - B: 70 mm
  - C: 110 mm
  - D: 14 mm
  - E: 34 mm
  - F: 4.5 mm
  - G: 5.25 mm
  - H: 35 mm
  - I: 90 mm
  - S: 25 mm
