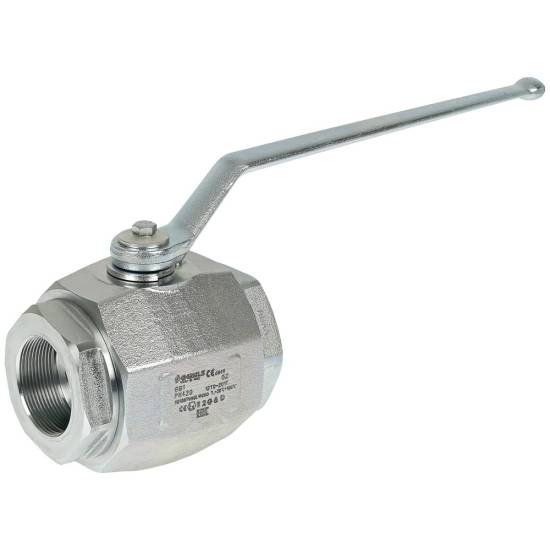

Shut-off Valve BSP 2"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHGB32

  ManufacturerGEMELS

  CharacteristicsType: GB1
  Max. pressure: 420 bar

  Check valve to block flow to a specific function.

  Technical specification:
  - type: GB1
  - DIN ISO 228 BSP
  - material carbon steel
  - NBR seal
  - hose: DN50
  - connection: G 2"
  - max. pressure: 420 bar
  - weight: 8.7 kg

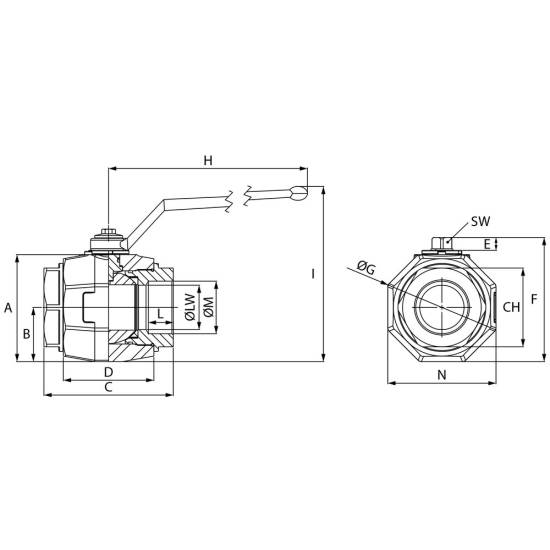

  Refer to attached image for specific measurements:
  - A: 116 mm
  - B: 59 mm
  - C: 140 mm
  - D: 98 mm
  - E: 14 mm
  - F: 134 mm
  - G: 126 mm
  - H: 310 mm
  - I: 189 mm
  - L: 27 mm
  - M: G 2"
  - N: 117 mm
  - CH: 85 mm
  - SW: 17 mm
  - LW: 50 mm
