Solenoid Directional Valve 3/8" - max. 50 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDAMV505E

  Manufacturer

  CharacteristicsWith emergency operation
  2x double acting

  Electrically controlled directional valve with adjustable safety valve. The valve is supplied with a lever.
  The valve package fits, among others, street sweepers, agricultural machinery, hydraulic presses, cranes, concrete pumps, and front loaders.

  Technical specification:
  - load-holding valve
  - material: cast iron housing, sections of chrome steel, sealing of NBR
  - 5 sections
  - function 2x double-acting
  - max. flow 50 l/min
  - max. working pressure 350 bar
  - max. return line pressure 30 bar

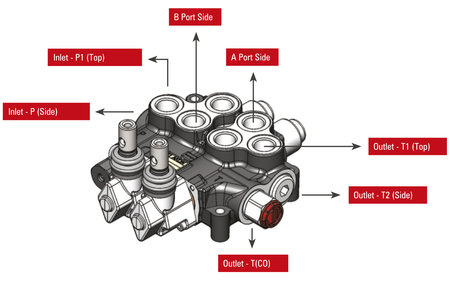

  - P-port G 1/2"
  - A/B-port G 3/8"
  - T-port G 1/2"
