Throttle Check Valve 1/4" - max. 20 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80540

  Manufacturer

  CharacteristicsType: VRF
  Max. pressure: 300 bar

  Valve that regulates flow in one direction and allows free flow in the other direction.
  Turn the valve to adjust the flow and lock it with a nut.

  Technical specification:
  - type: VRF
  - material zinc-coated steel
  - connection V C: G 1/4"
  - max. flow: 20 l/min
  - max. pressure: 300 bar
  - opening pressure: 0,5 bar

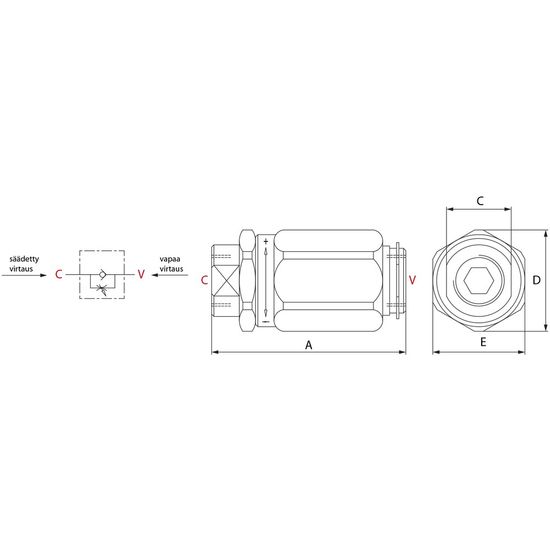

  See attached image for specific dimensions:
  - A: 66,5 mm
  - C: 19 mm
  - D: 34 mm
  - E: 30 mm
