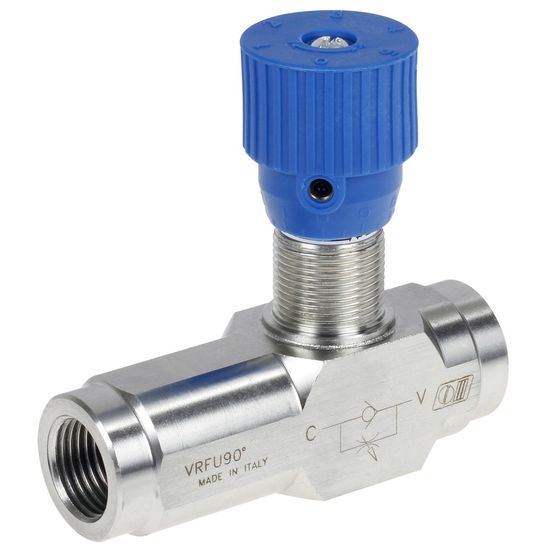

Throttle Check Valve 3/4" - max. 80 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80588

  Manufacturer

  CharacteristicsType: VRFU 90°
  Max. pressure: 280 bar

  Valve that regulates flow in one direction and allows free flow in the other direction.
  The flow opening is regulated with an adjustment knob that can also be locked.

  Technical specification:
  - type: VRFU 90°
  - material galvanized steel
  - connection V C: G 3/4"
  - max. flow: 80 l/min
  - max. pressure: 280 bar
  - opening pressure: 0.5 bar

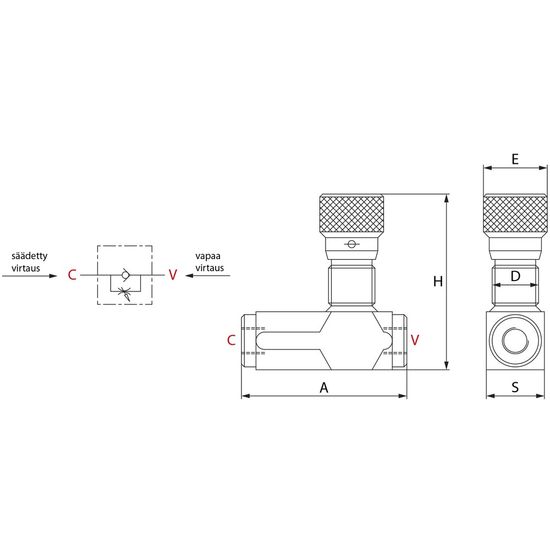

  See attached image for specific measurements:
  - A: 118 mm
  - D: M35x1.5 mm
  - E: 42 mm
  - H: 108.5 mm
  - S: 40 mm
