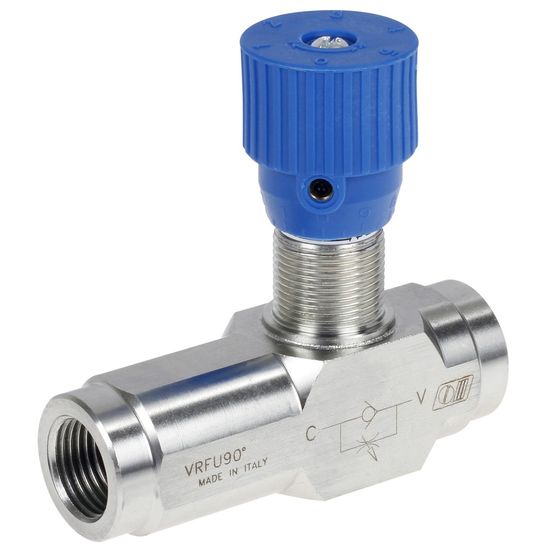

Throttle Check Valve 3/8" - max. 30 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80582

  Manufacturer

  CharacteristicsType: VRFU 90°
  Max pressure: 350 bar

  Valve that regulates flow in one direction and allows free flow in the other direction.
  The flow opening is regulated with an adjustment knob that can also be locked.

  Technical specification:
  - type: VRFU 90°
  - material galvanized steel
  - connection V C: G 3/8"
  - max. flow: 30 l/min
  - max. pressure: 350 bar
  - opening pressure: 0.5 bar

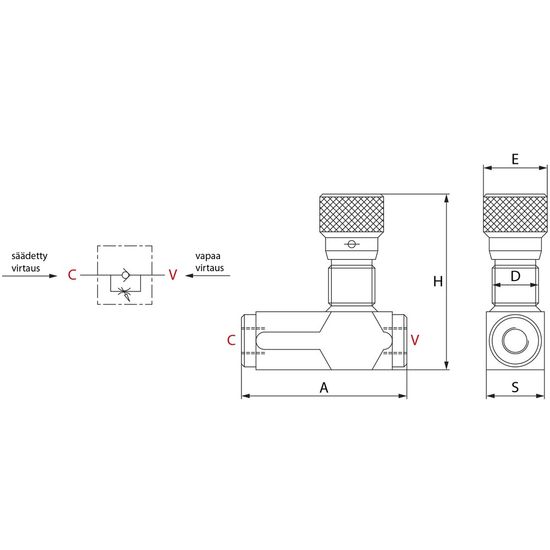

  See attached image for specific measurements:
  - A: 83 mm
  - D: M22x1.5 mm
  - E: 32 mm
  - H: 82 mm
  - S: 25 mm
