Throttle Check Valve 3/8" - max. 45 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80550

  Manufacturer

  CharacteristicsType: VRF
  Max. pressure: 300 bar

  Valve that regulates the flow in one direction and allows free flow in the other direction.
  Turn the valve to adjust the flow and lock it with a nut.

  Technical specifications:
  - type: VRF
  - material galvanized steel
  - connection V C: G 3/8"
  - max. flow: 45 l/min
  - max. pressure: 300 bar
  - opening pressure: 0.5 bar

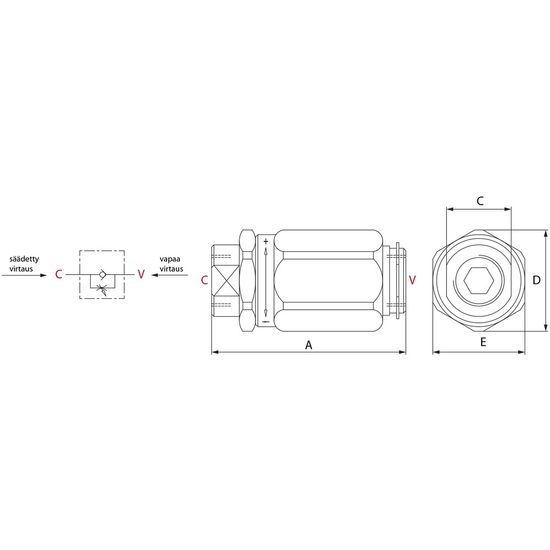

  Refer to the attached image for specific dimensions:
  - A: 73 mm
  - C: 24 mm
  - D: 36 mm
  - E: 32 mm
