Throttle Valve 1/2" - max. 50 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80587

  Manufacturer

  CharacteristicsType: VRFB 90°
  Max. pressure: 350 bar

  Valve that regulates flow in both directions.
  The flow opening is regulated with an adjustment knob that can also be locked.

  Technical specification:
  - type: VRFB 90°
  - material galvanized steel
  - connection V C: G 1/2"
  - max. flow: 50 l/min
  - max. pressure: 350 bar

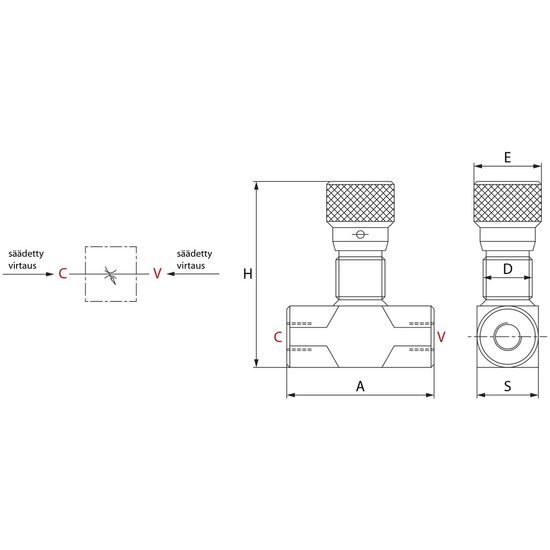

  See attached image for specific measurements:
  - A: 70 mm
  - D: M22x1.5 mm
  - E: 32 mm
  - H: 87 mm
  - S: 30 mm
