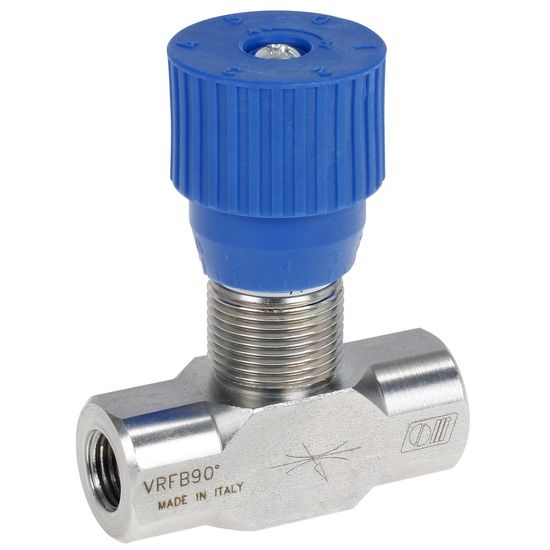

Throttle Valve 1/4" - max. 15 l/min

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDH80584

  Manufacturer

  CharacteristicsType: VRFB 90°
  Max. pressure: 350 bar

  Valve that regulates flow in both directions.
  The flow opening is regulated with an adjustment knob that can also be locked.

  Technical specification:
  - type: VRFB 90°
  - material galvanized steel
  - connection V C: G 1/4"
  - max. flow: 15 l/min
  - max. pressure: 350 bar

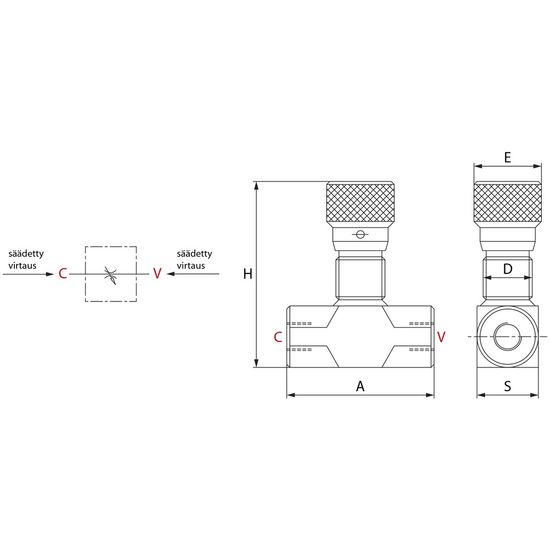

  See attached image for specific measurements:
  - A: 60 mm
  - D: M22x1.5 mm
  - E: 32 mm
  - H: 82 mm
  - S: 25 mm
