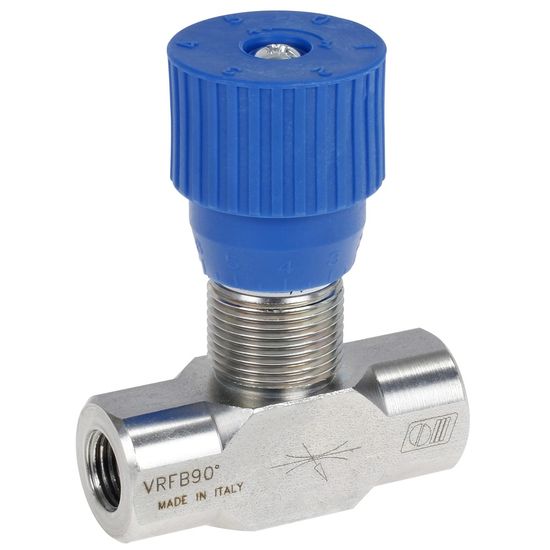

Throttle Valve 3/4" - max. 80 l/min

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDH80589

  Manufacturer

  CharacteristicsType: VRFB 90°
  Max. pressure: 280 bar

  Valve that regulates flow in both directions.
  The flow opening is regulated with an adjustment knob that can also be locked.

  Technical specification:
  - type: VRFB 90°
  - material galvanized steel
  - connection V C: G 3/4"
  - max. flow: 80 l/min
  - max. pressure: 280 bar

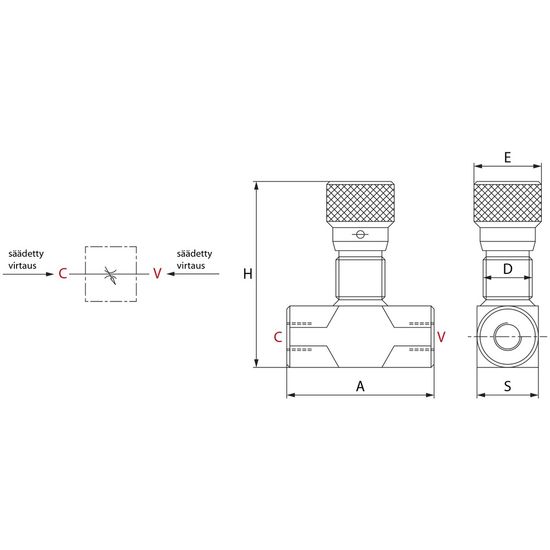

  See attached image for specific measurements:
  - A: 89 mm
  - D: M35x1.5 mm
  - E: 42 mm
  - H: 108.5 mm
  - S: 40 mm
