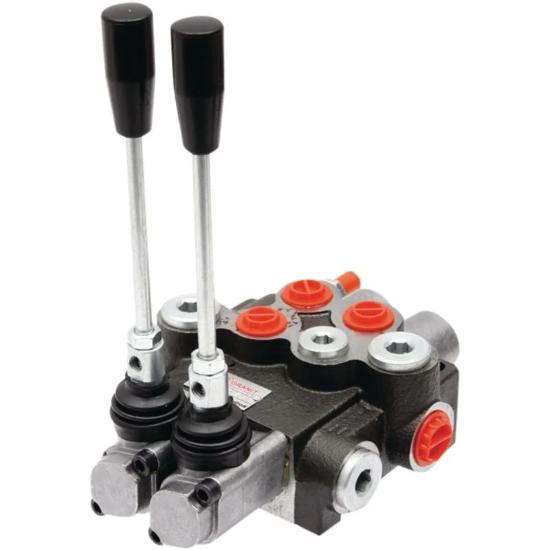

Valve Z50 1x DV, 1x EV (A, A-B)

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product ID87001344

  Manufacturer

  Characteristics

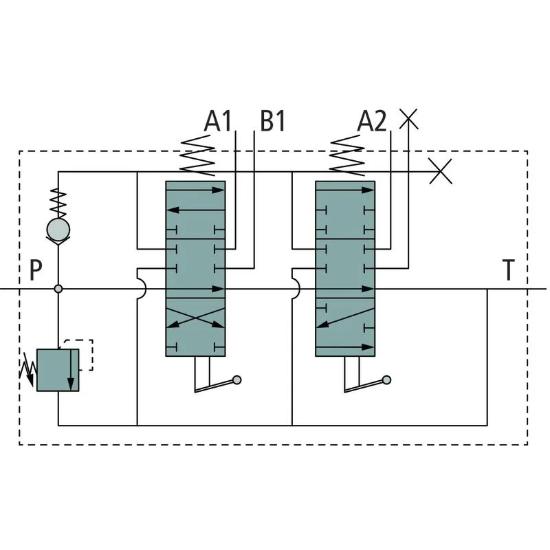

  Design: 4/3-way, 1x DA, 1x SA (A, A-B closed / spring return)
  Control spool function: 1 x SA, 1 x DA
  Connection P (BSP): G 1/2"
  Connection A-B (BSP): G 3/8"
  Connection T (BSP): G 1/2"

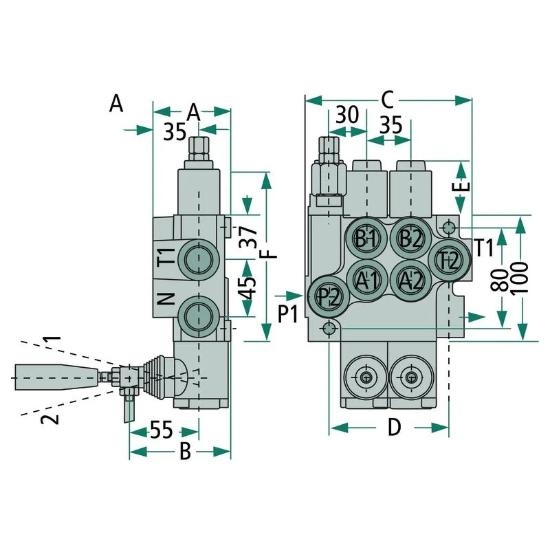

  A (mm): 60
  B (mm): 80
  C (mm): 129
  D (mm): 97
  PN (bar): 250
  Nominal flow (l/min): 40
  Levers: 2
  Adjustment range (bar): 120 - 250
  Nom. operating pressure P - N: 250 bar
  Nom. operating pressure A - B: 300 bar
  Nom. operating pressure T: 50 bar
  Connection: P-T-N 1/2" BSP
  Connection: A-B 3/8" BSP
  Flow: 40 l/min
  Oil temperature: -15 °C to +80 °C
  Design: Cast steel monoblock valve, contamination level 10 according to NAS1638
  Internal leakage: approx. 15 cm³/min at 120 bar
