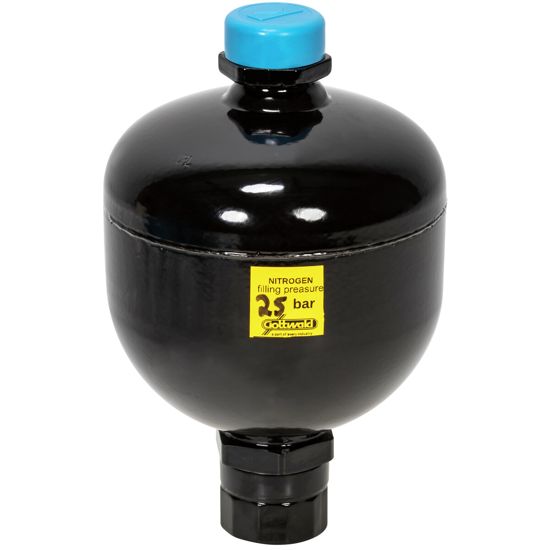

Bladder accumulator 0,7L Pre-Charge 25bar G1/2"

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK07025

  Manufacturer

  CharacteristicsMax. pressure: 210 bar

  - General accumulator size, that is used in many different applications, e.g. industry, work machines and equipment
  - A diaphragm accumulator is best suited for systems that require sensitivity and fast response to pressure changes
  - Diaphragm accumulator is also cost-effective and tolerates contaminants well
  - Thanks to the ECO film material it is also well suited for Nordic conditions
  - Max. working pressure 210 bar
  - ECO film
  - Volume 0,75 l
  - Operating temperature -40...+80 °C
  - Gas valve M28x1,5
  - Charging pressure 25 bar (can be adjusted to desired level if required)
  - G 1/2" + M33x1,5

  Application areas e.g.:
  - Boom damping for larger loaders, pre-charged with 25 bar is suitable
  - For hydraulic system for combine harvesters and tractors by change trycket, where this accumulator size is used in several different applications

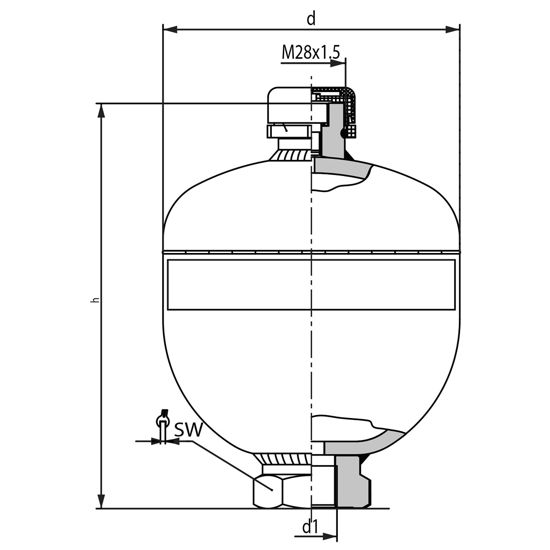

  Dimensions (mm):
  - H 184
  - D 122
  - D1 1/2" + M33x1,5
  - SW 41
