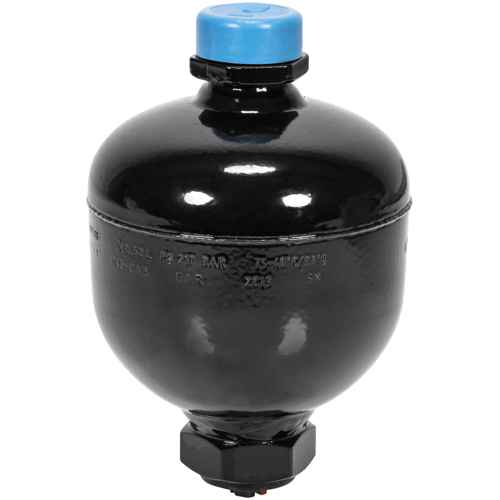

Diaphragm accumulator 0.5L Precharged 25Bar G1/2

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDHPAK05025

  Manufacturer

  Characteristics

  - general battery size, used in many different applications
  - the diaphragm battery is best suited for systems requiring battery sensitivity and quick response to pressure changes
  - a diaphragm battery is also inexpensive and tolerates contamination well
  - thanks to the ECO film material, it is also suitable for Nordic conditions
  - max. working pressure 210 bar
  - ECO film
  - volume 0.5 l
  - operating temperature -40...+80 °C
  - gas valve M28x1.5
  - filling pressure 25 bar (adjustable to desired level if needed)
  - connections G 1/2"

  Dimensions (mm):
  - h 159
  - d 107
  - d1 1/2"
  - SW 41
• Suitable for models
• New Holland CR8.90
  New Holland CR8080
  New Holland CR9070
  New Holland CR9080
  New Holland CX8090
  New Holland CX8090 Elevation
  New Holland CX840
